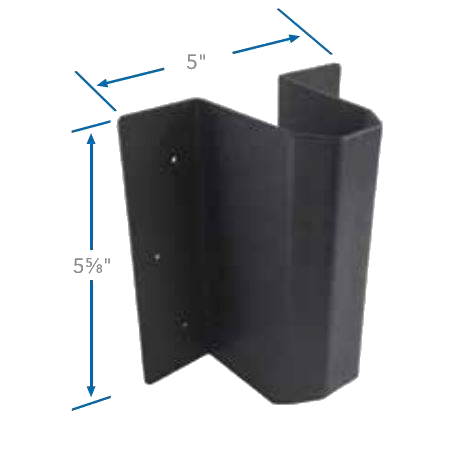

Fortress Evolution Ledger Bracket

The Fortress Evolution Ledger Bracket used with S-ledger and joist or fastened to a flush beam.

Precision-engineered component designed to facilitate secure and efficient deck framing. Specifically crafted for use with the Fortress Evolution S-Ledger, this bracket seamlessly integrates into pre-punched spacing, eliminating the need for excessive fasteners and expediting installation. Its robust construction ensures a sturdy connection between the ledger and joists or flush beams, enhancing the overall structural integrity of your deck. Compatible with both standard and custom joist spacing, the Ledger Bracket offers versatility to accommodate various deck designs. Incorporating this bracket into your deck framing system not only simplifies the construction process but also provides long-lasting durability and peace of mind.

Key Features:

• Engineered Design: Tailored for use with the Fortress Evolution S-Ledger, ensuring a precise fit and secure connection.
• Efficient Installation: Integrates into pre-punched spacing, reducing the need for additional fasteners and speeding up the building process.
• Versatile Application: Suitable for attaching to joists or flush beams, accommodating various deck configurations.
• Durable Construction: Made from high-quality materials to withstand the elements and provide long-term performance.

Installation Tips:

• Ensure proper alignment of the Ledger Bracket with the S-Ledger or joist before securing to maintain structural integrity.
• Follow manufacturer guidelines for fastening to achieve optimal performance and safety.
• Regularly inspect connections for signs of wear or corrosion, especially in outdoor environments, to ensure ongoing stability.

By integrating the Fortress Evolution Ledger Bracket into your deck framing system, you achieve a reliable and efficient connection that enhances the overall strength and longevity of your deck structure.

1. S-Ledger (pre-spaced 12" & 16" O.C.)
2. Ledger Bracket
3. Joist (2"x6")
4. F50 Bracket
5. Strap (mid-span blocking)
6. Beam (2"x11")
7. Beam Cap
8. Post to Beam Bracket
9. Post (3½"x3½"x10')
10. Blocking (12" & 16" O.C.)
11. Post to Pier Bracket
12. Single Hanger Brackets
13. Rim Joist (pre-spaced 12" & 16" O.C.)
