Fortress Evolution S-Ledger

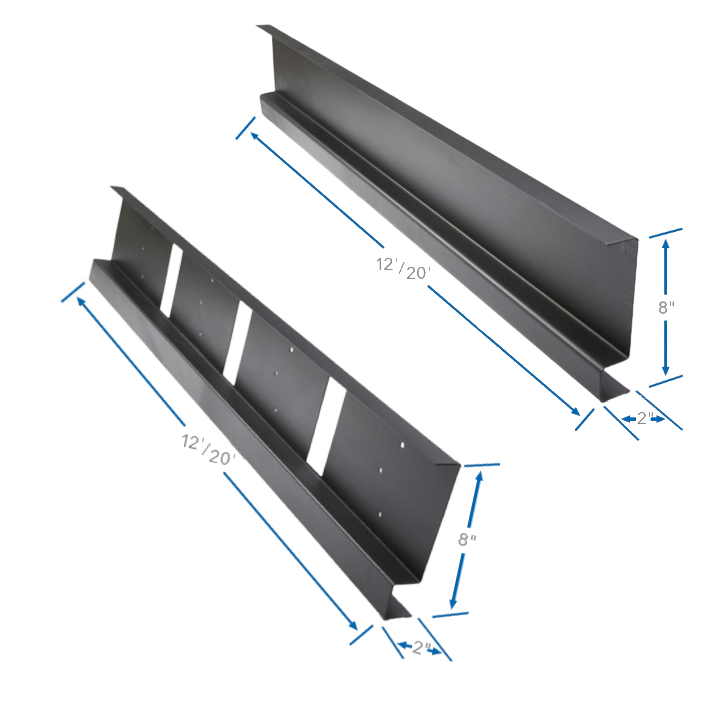

Fortress Evolution's Blank S-Ledger is designed to work with custom, non-standard joist spacing. The Blank S-Ledger can also be used around bay windows and other angled ledger attachments

Key Features:

• Engineered Interlocking Design: The "S" shape interlocks with the Ledger Bracket, reducing the need for additional fasteners and expediting installation.

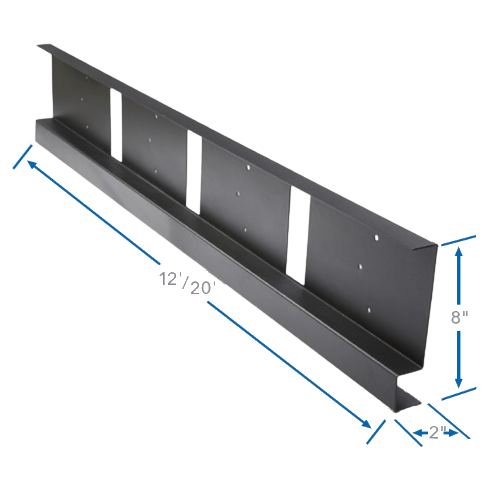

• Pre-Punched Standard Spacing: Available with pre-punched holes for standard joist spacing, facilitating precise and efficient construction.
• Blank Option for Customization: The Blank S-Ledger accommodates non-standard joist spacing and complex architectural elements, offering versatility in design.
• Durable Construction: Manufactured from high-quality materials to ensure long-lasting performance and safety.

Installation Tips:

• Ensure the S-Ledger is properly aligned with the supporting structure before securing to maintain structural integrity.
• Utilize the appropriate Ledger Brackets and follow manufacturer guidelines to achieve optimal performance.
• Regularly inspect connections for signs of wear or corrosion, especially in outdoor environments, to ensure ongoing safety and durability.

Incorporating the Fortress Evolution S-Ledger into your deck framing system not only enhances the structural soundness of your deck but also contributes to a more efficient and streamlined construction process, providing peace of mind for years to come.

1. S-Ledger (pre-spaced 12" & 16" O.C.)
2. Ledger Bracket
3. Joist (2"x6")
4. F50 Bracket
5. Strap (mid-span blocking)
6. Beam (2"x11")
7. Beam Cap
8. Post to Beam Bracket
9. Post (3½"x3½"x10')
10. Blocking (12" & 16" O.C.)
11. Post to Pier Bracket
12. Single Hanger Brackets
13. Rim Joist (pre-spaced 12" & 16" O.C.)
