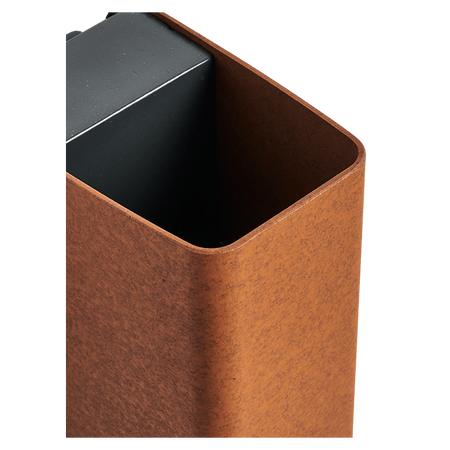

in-lite Ace down

In stock
SKU: 10301861 Barcode: 8717051006036
$209.43 CAD

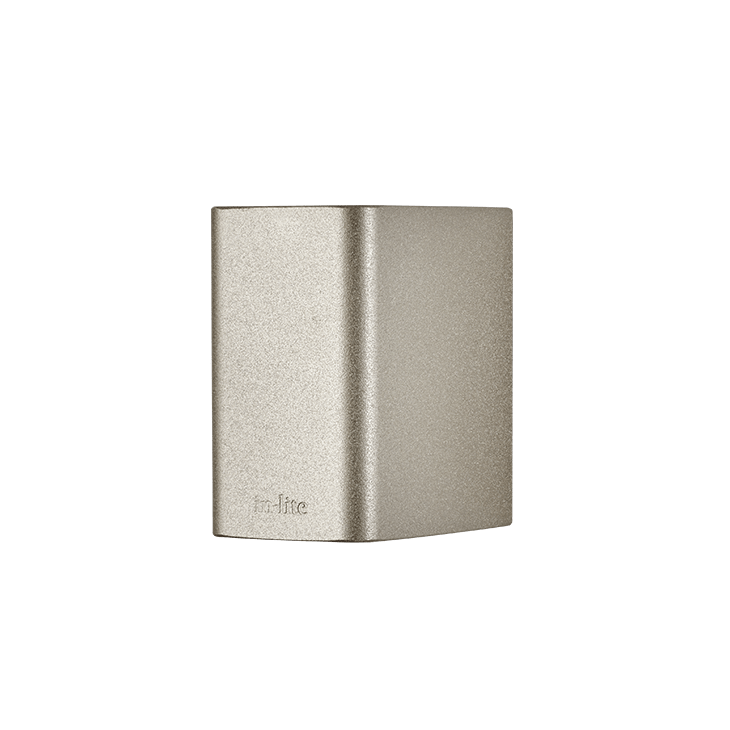

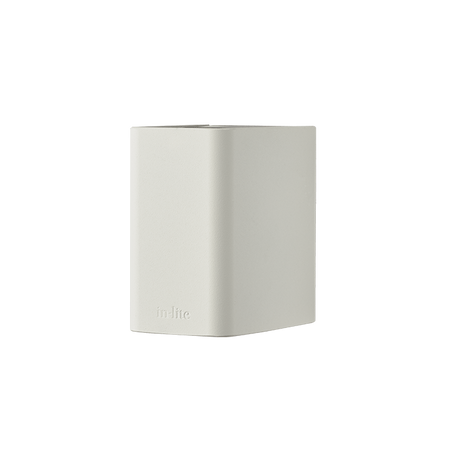

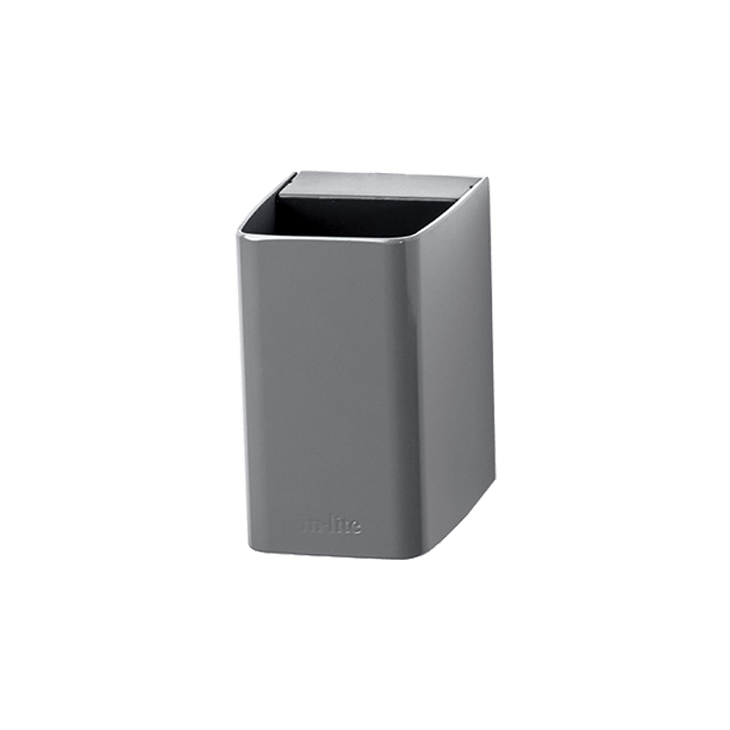

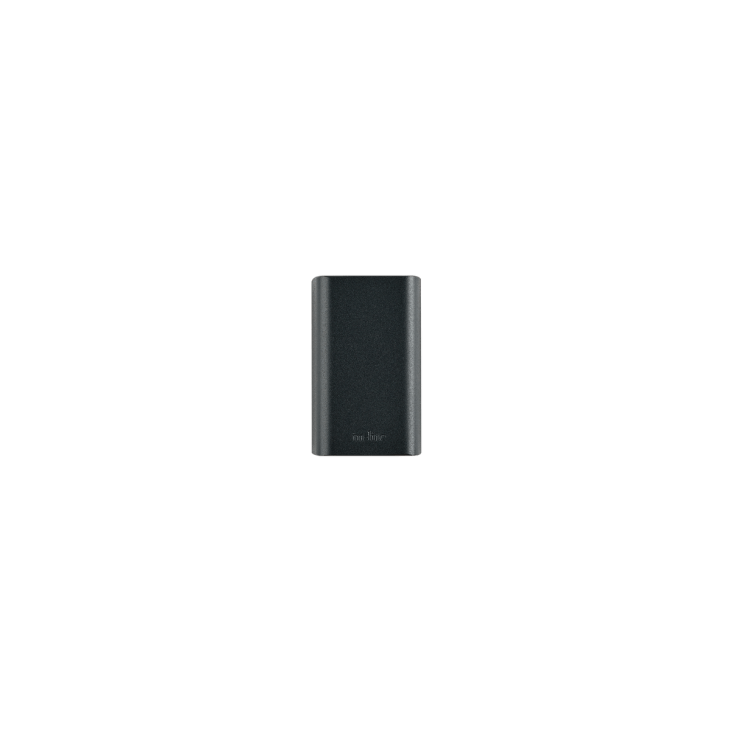

Color
Share your thoughts and inspire others! Connect with us on social media or start a conversation today.

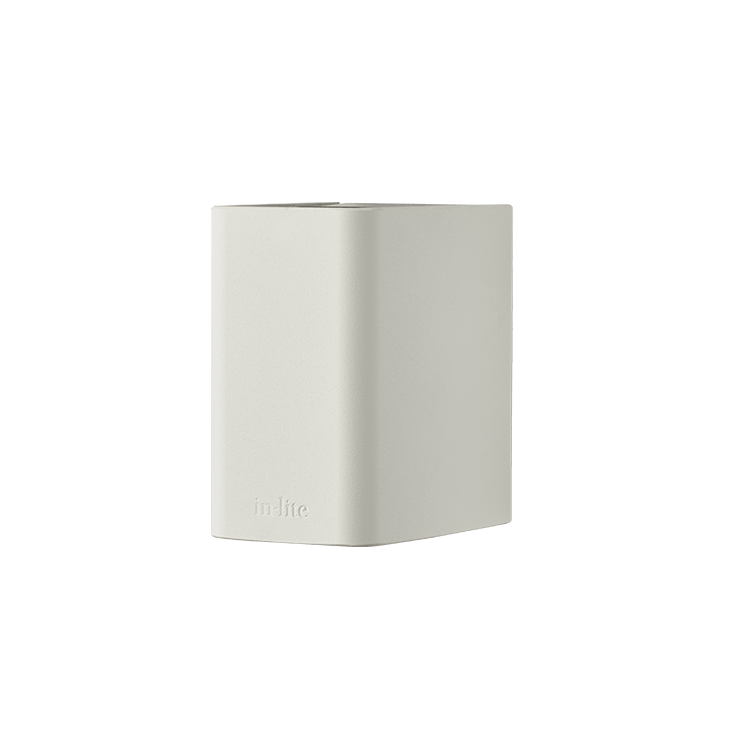

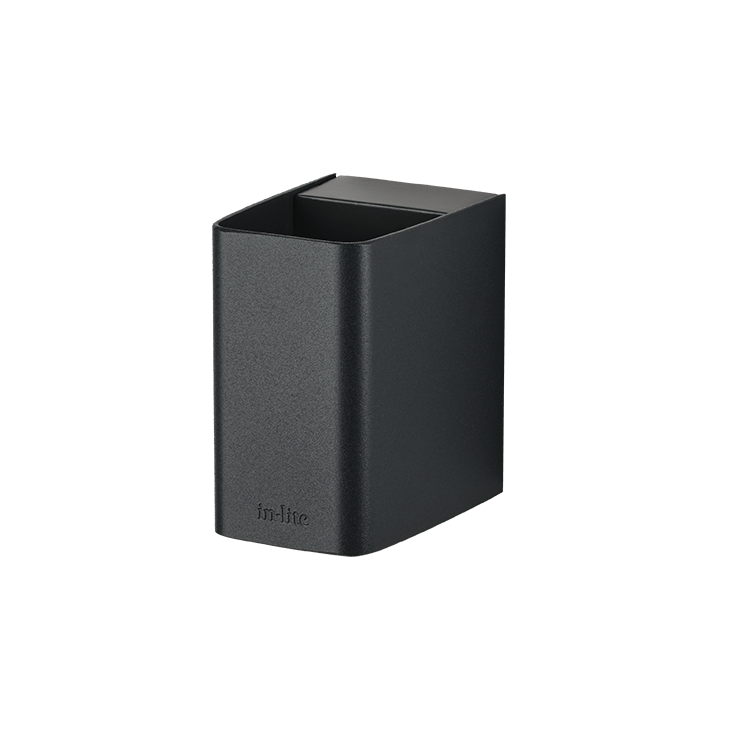

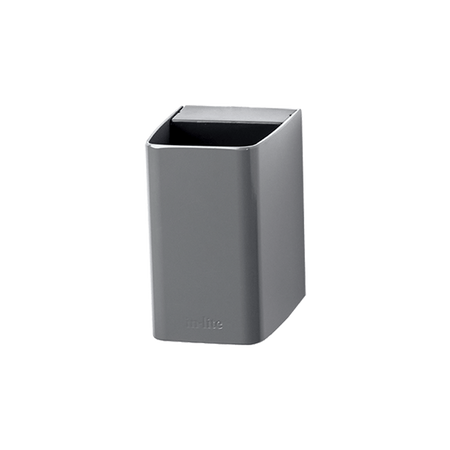

ACE DOWN

Wall light - ↨ 100 mm / 3,94"

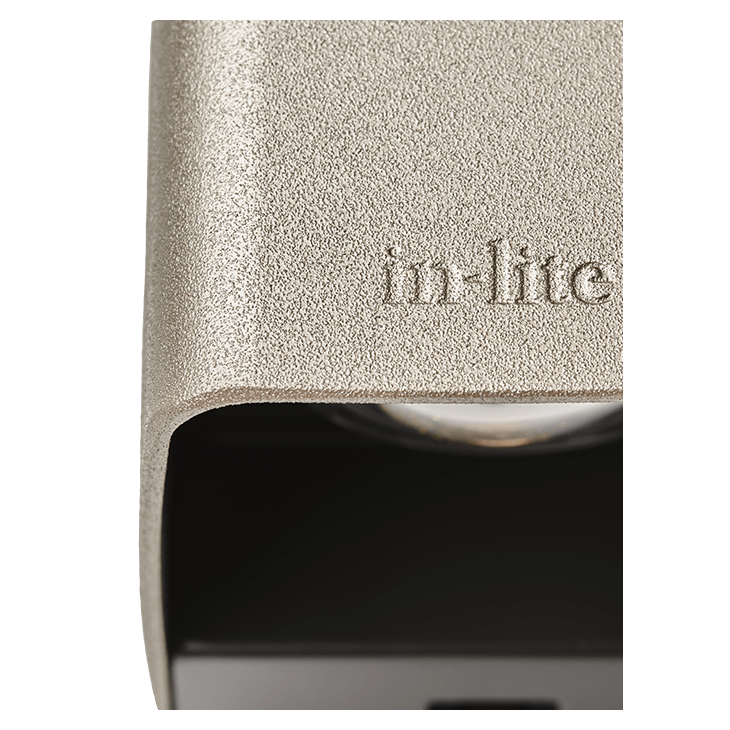

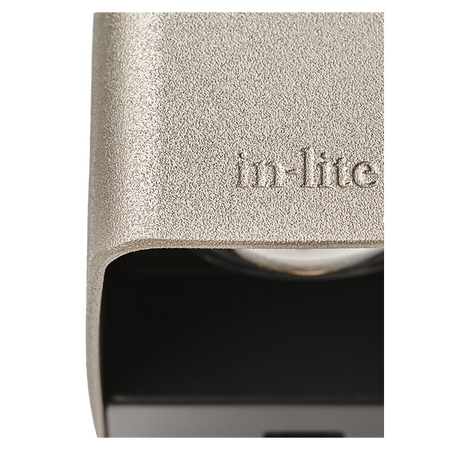

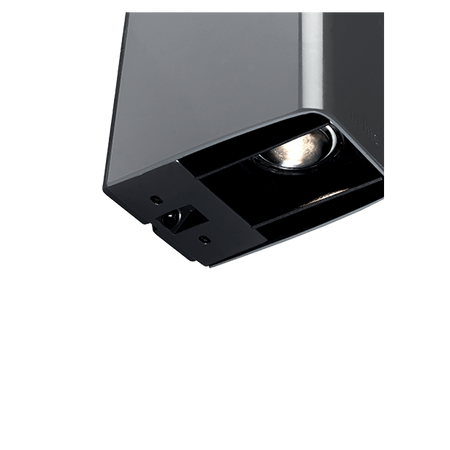

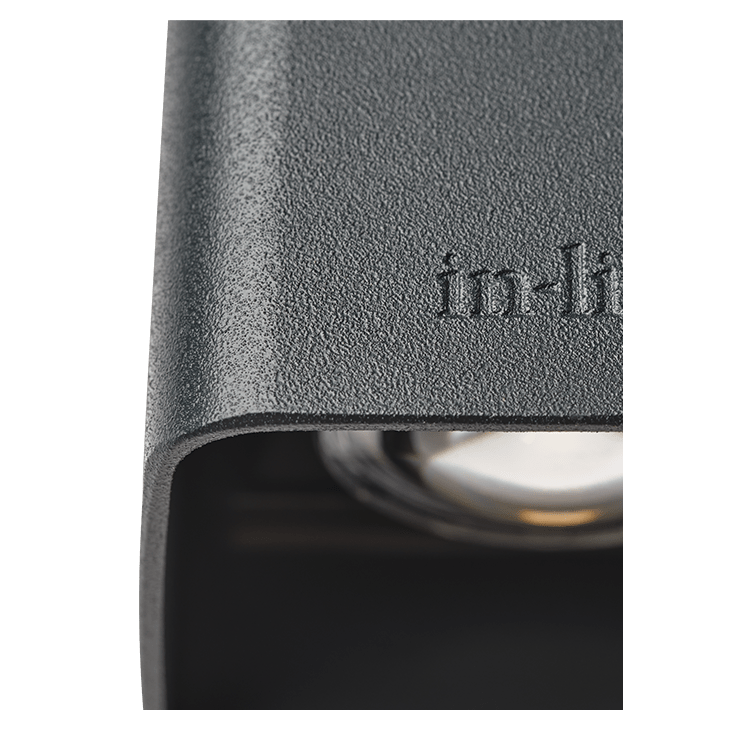

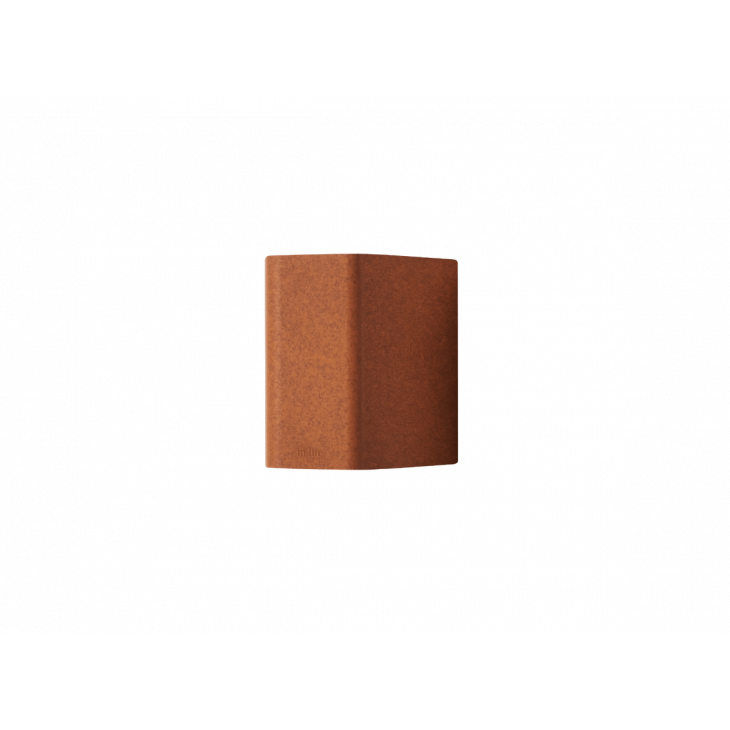

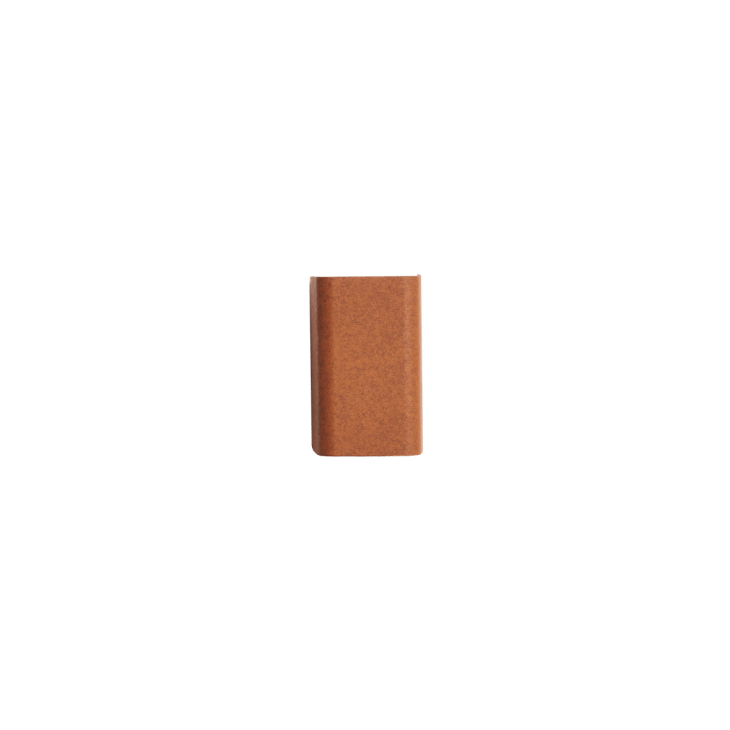

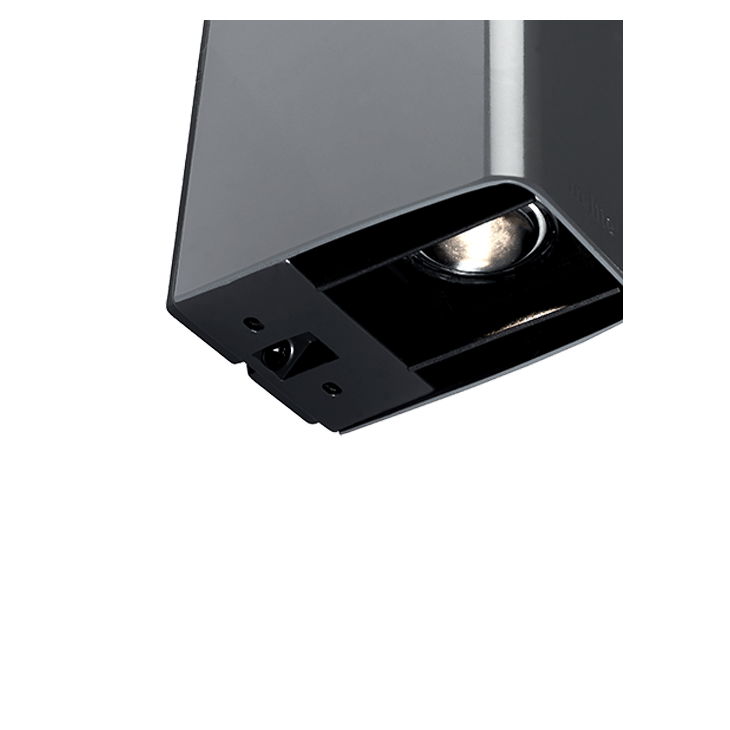

ACE DOWN wall fixture produces a focused beam of light and can be mounted on a wall or fence. The light source lies deep within the fixture to ensure the light is not blinding. The width of the light provided by the ACE DOWN can be adjusted using the separately available SHUTTER 1.

The EASY-LOCK is supplied as standard with this luminaire. The cable length on this luminaire is 60 cm.

Tip: Think of an extension cable

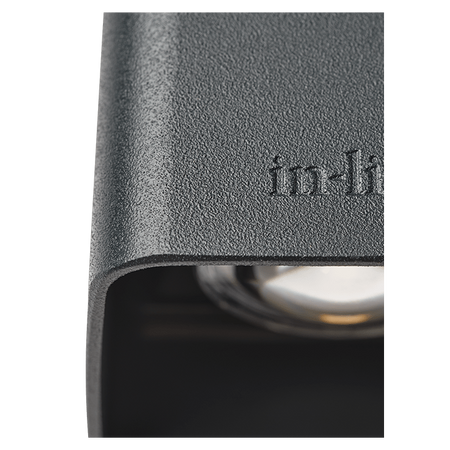

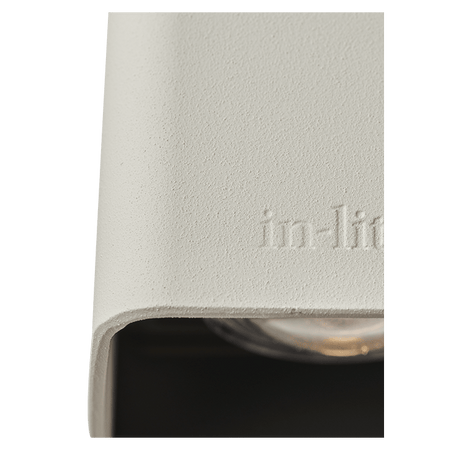

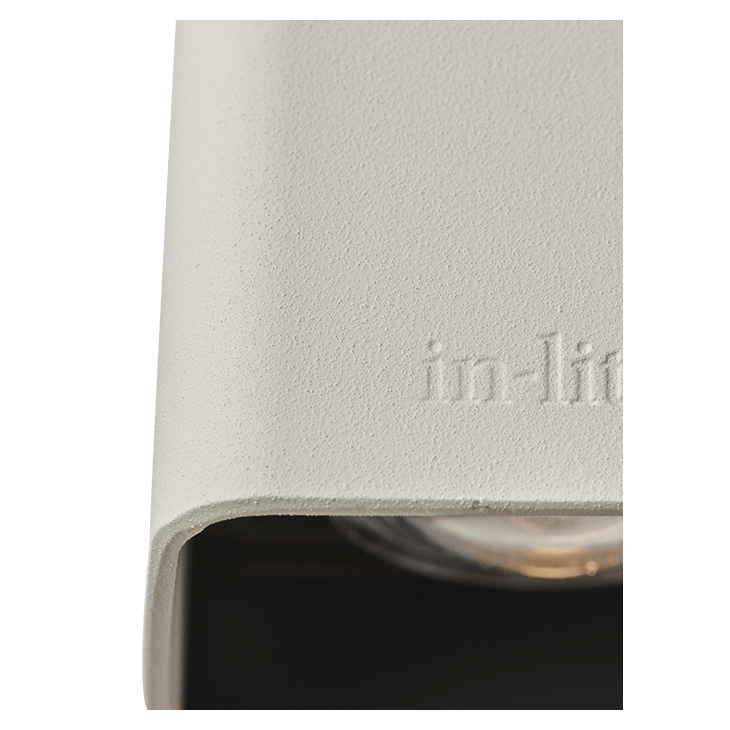

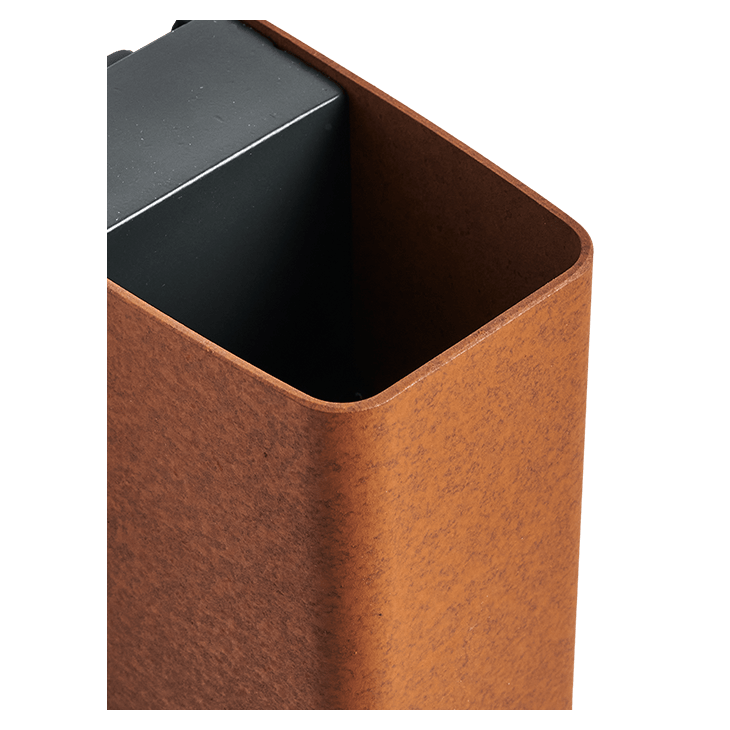

A high-quality FCBV coating in a variety of colors. Combines well with other fixtures in the same color. Also available with UP-DOWN lighting.
  • Produces a focused downward light

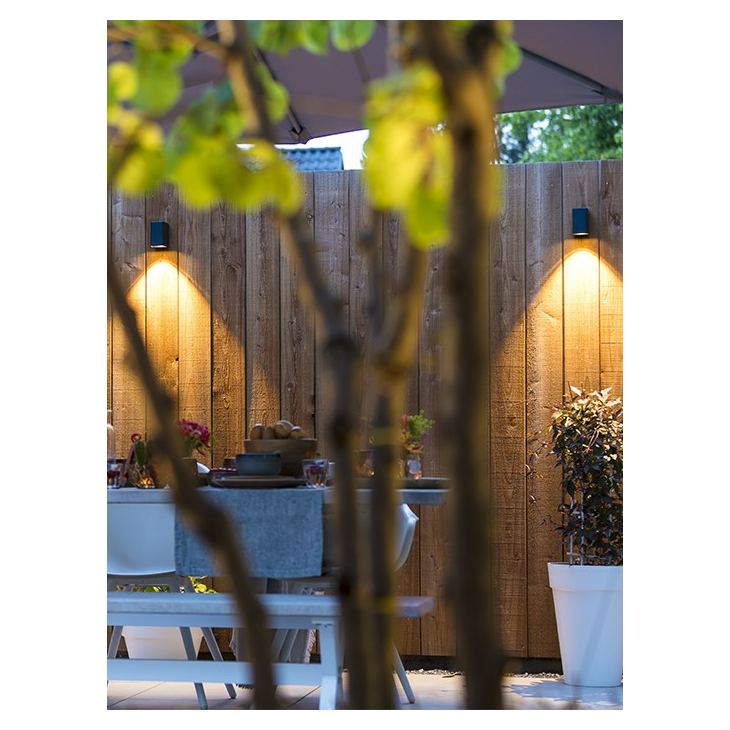

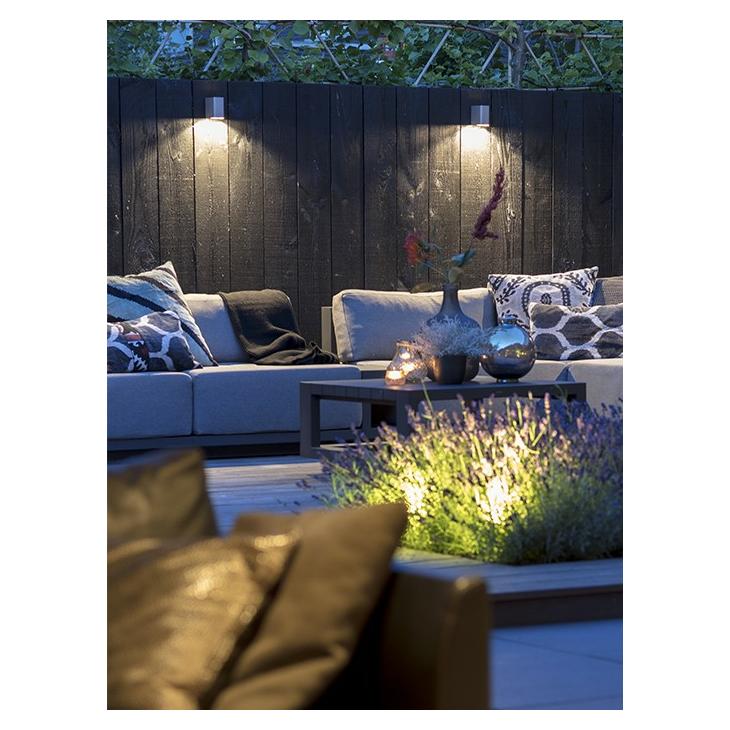

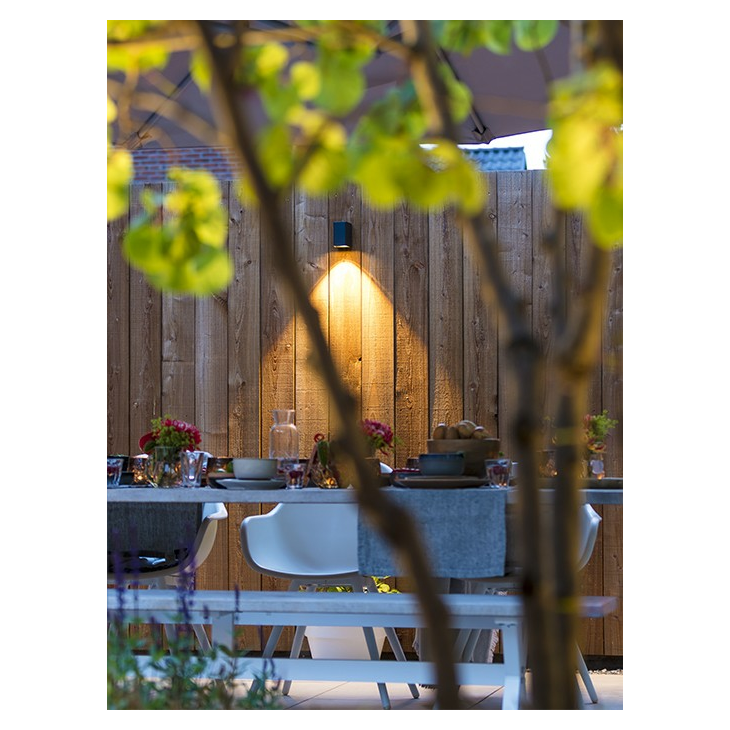

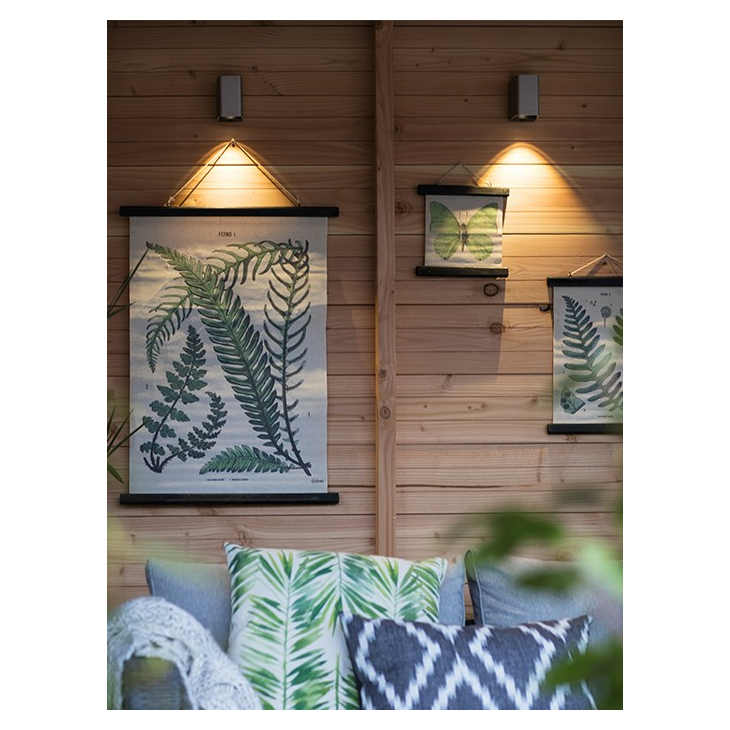

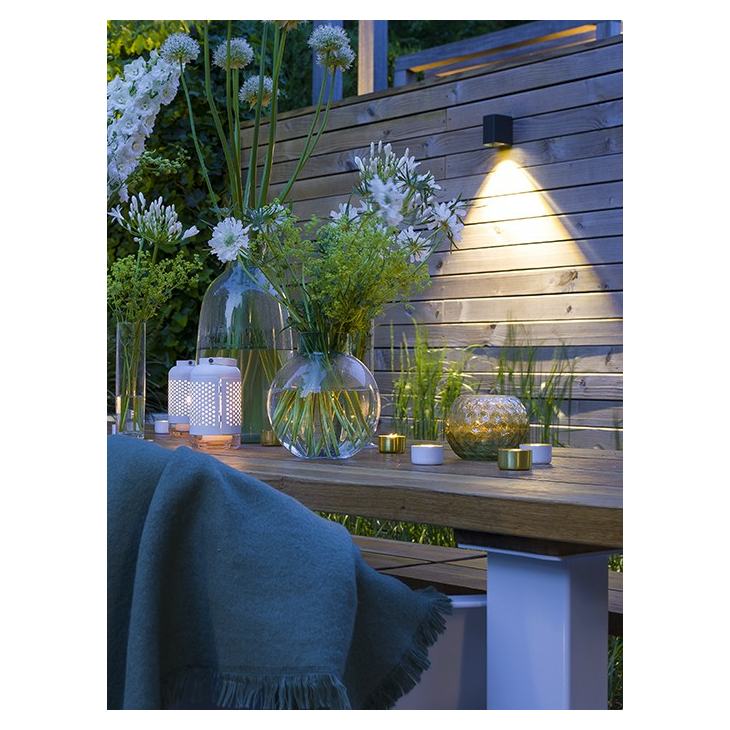

  • Designed for illuminating a fence or wall
  • Lighting effect can be adjusted with several accessories
Installation advice:

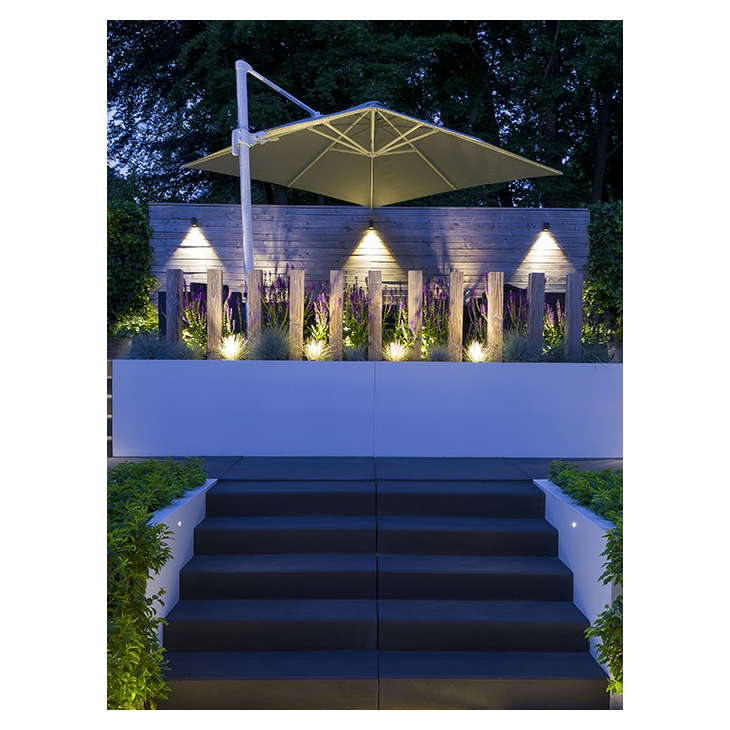

An ACE DOWN every 2 to 2½ meters at a height of 1.4 to 1.8 meters

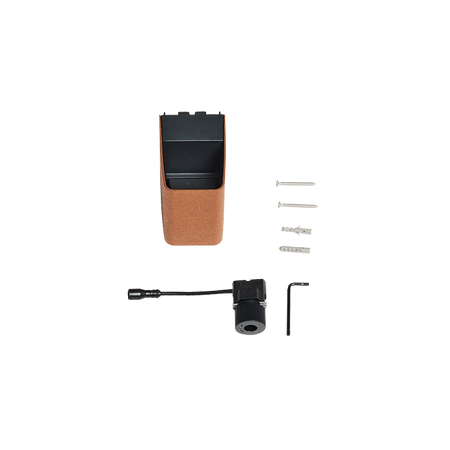

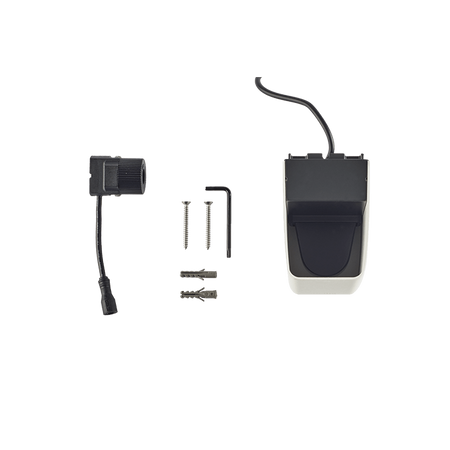

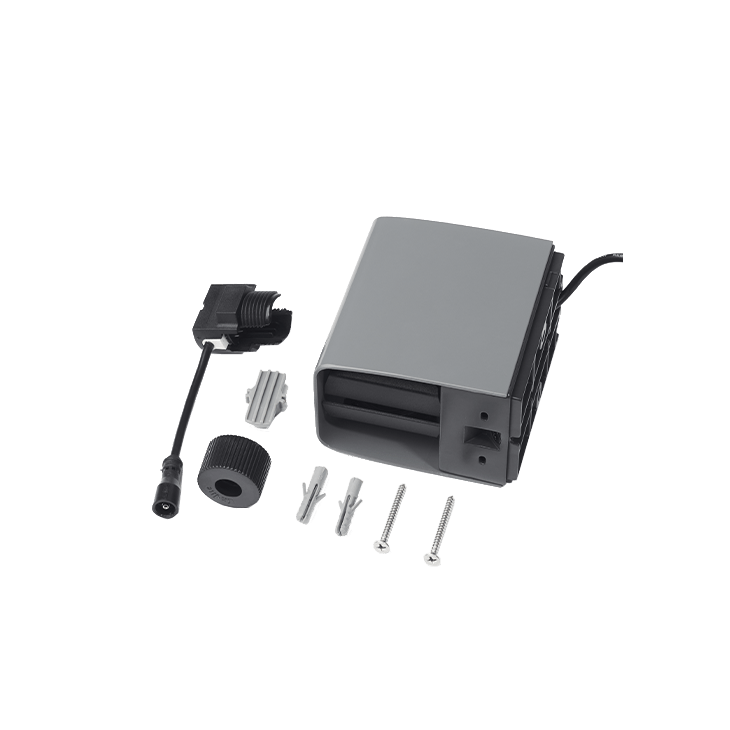

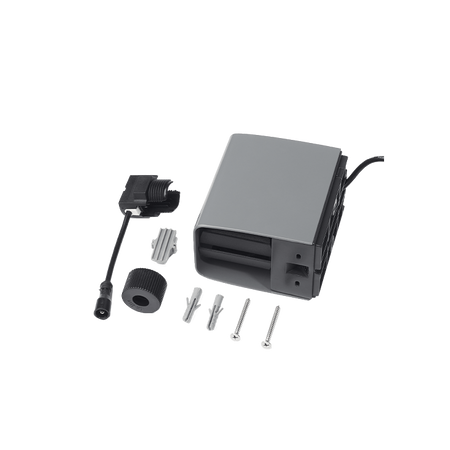

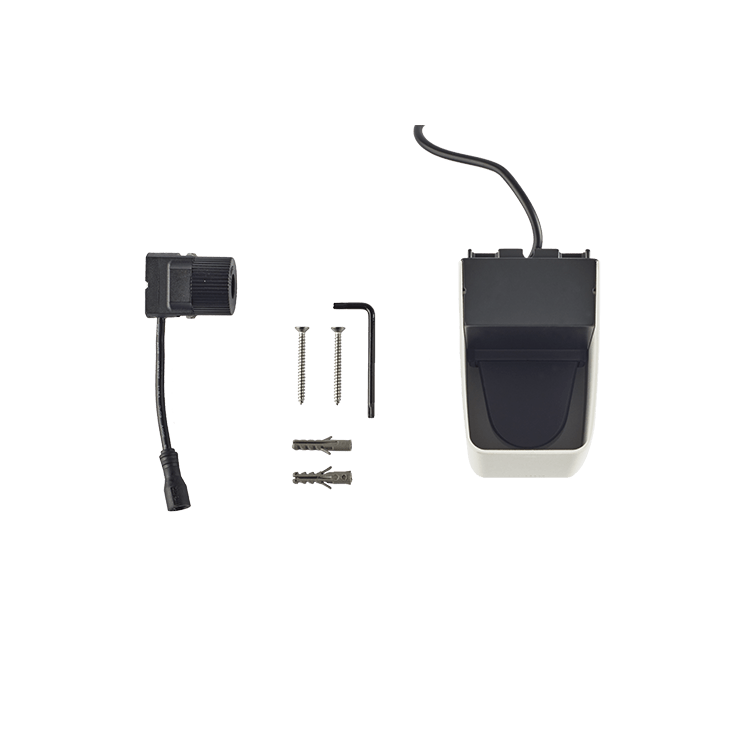

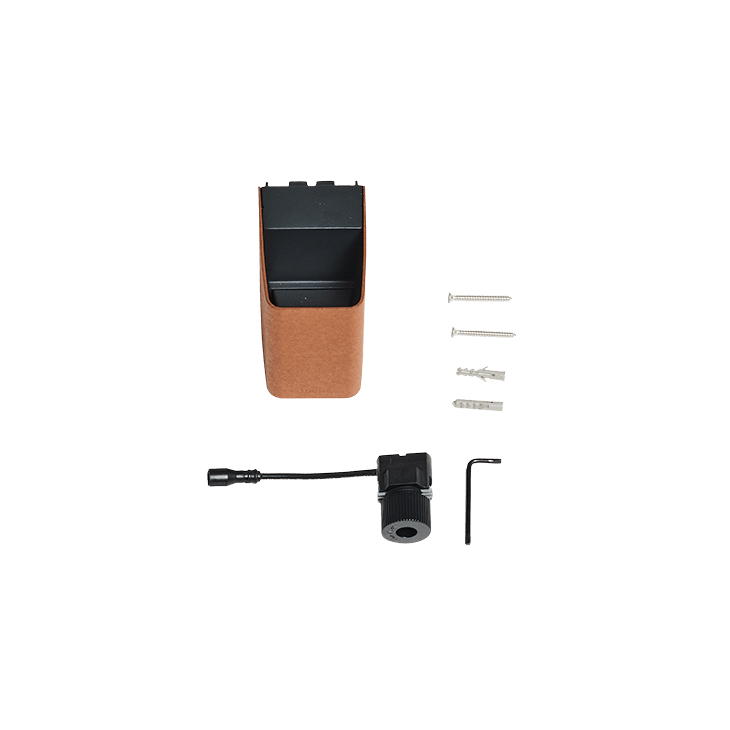

IN THE PACKAGE
INCLUDED IN PACKAGE
1x EASY LOCK
60 cm Fixture cable
2x Nylon plug
2x Screw
1x Torx wrench

ACE DOWN wall fixture produces a focused beam of light and can be mounted on a wall or fence. The light source lies deep within the fixture to ensure the light is not blinding. The width of the light provided by the ACE DOWN can be adjusted using the separately available SHUTTER 1.

Product Specifications

Article Number: 10301861
Application: Gevel, Huis, Overkapping, Schutting/Muur
CRI (Color Rendering Index): 91
EAN Code: 8717051006036
Energy Label: G

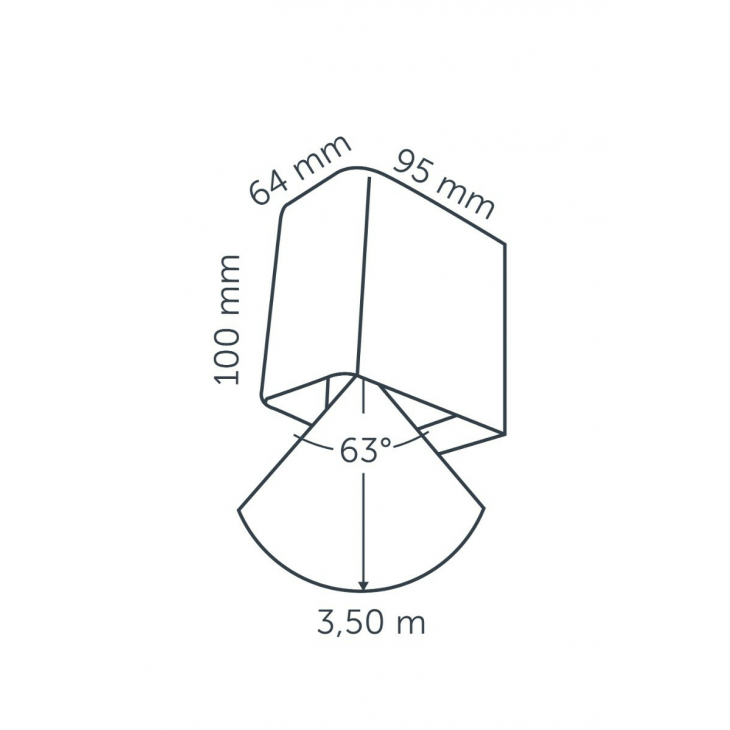

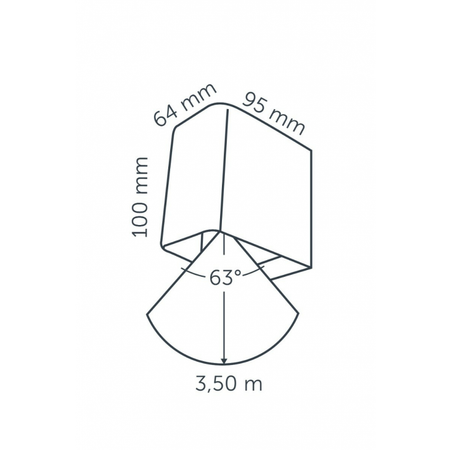

Height:
100 mm
3.937 inches
IP Class: 55
Length:
95 mm
3.7402 inches
Light Direction: Naar beneden (Downward)
Light Type: Direct
Efficiency (Lumen/Watt): 58
Net Luminous Flux: 173 Lumens
Power: 3 W
Article Group: Wall
Voltage: 12 Volts
VA Value: 5.3
Width:
64 mm
2.5197 inches
Color Temperature: 3000 K
Luminous Intensity: 196 Candela
Power Factor: 0.57
