in-lite DB LED

In stock
SKU: 10102402 Barcode: 8717051002366
$48.08 CAD
Light Type
Share your thoughts and inspire others! Connect with us on social media or start a conversation today.

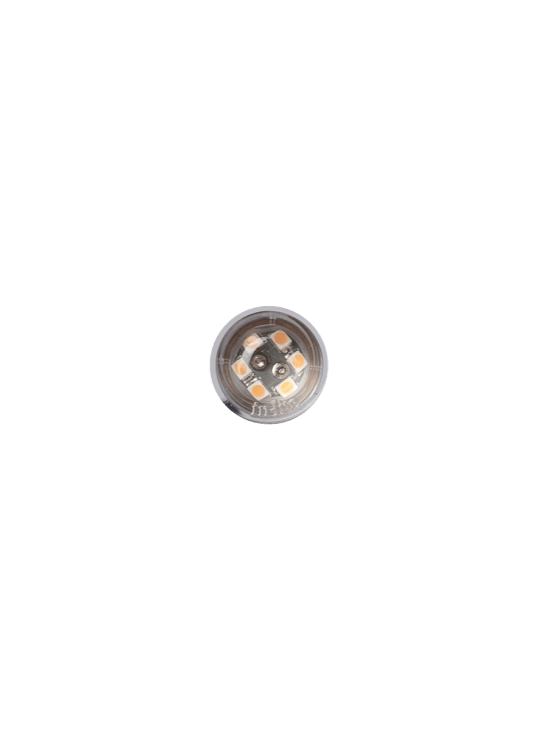

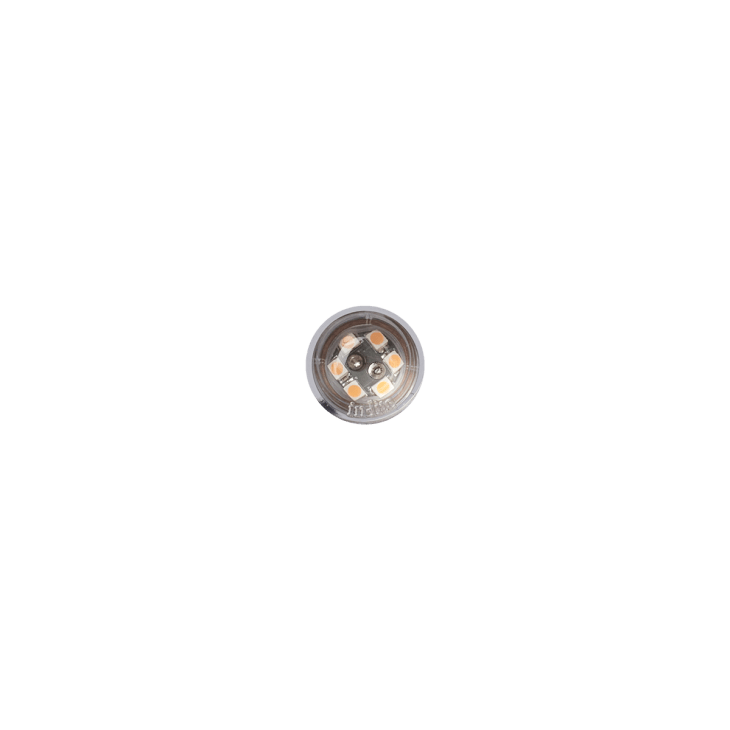

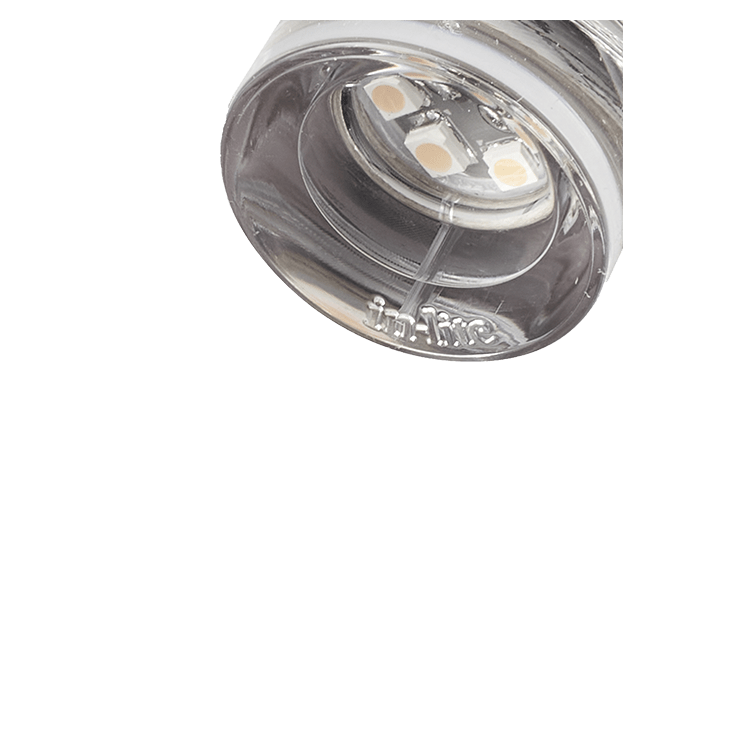

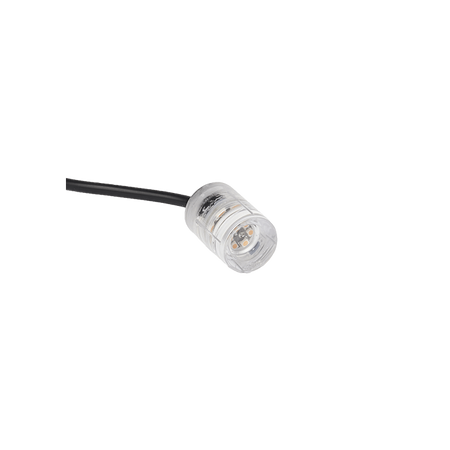

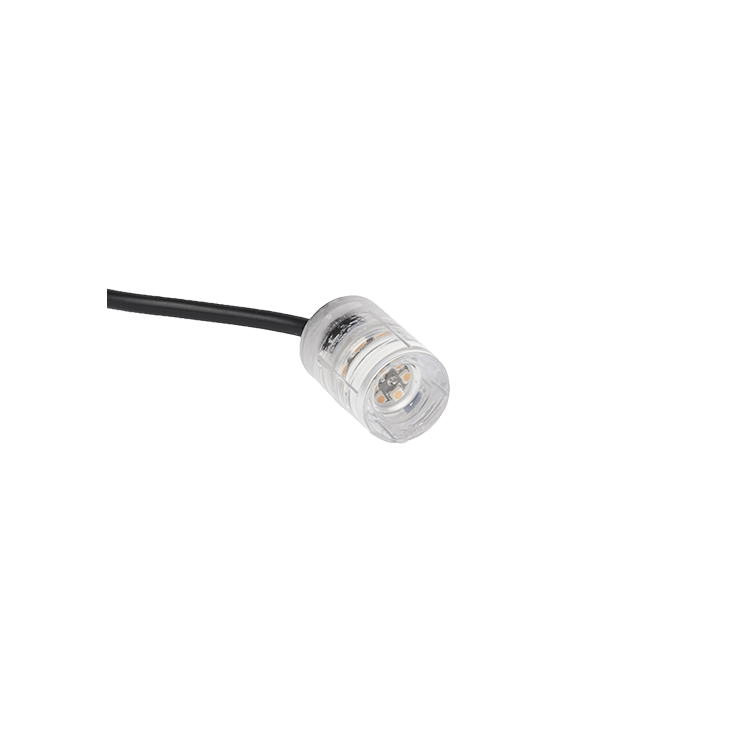

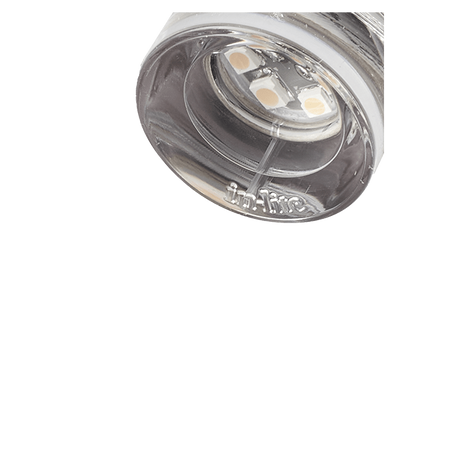

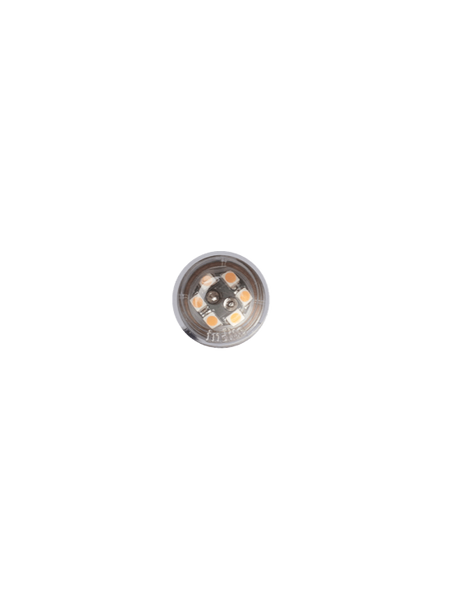

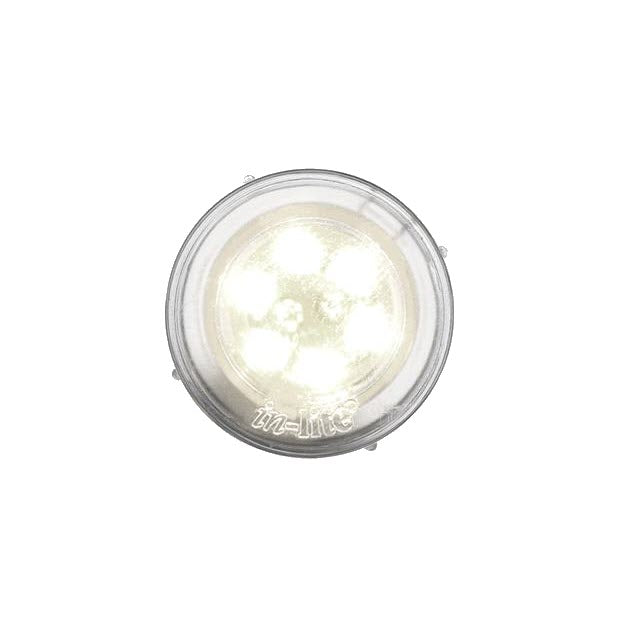

DB-LED

Recessed light - Ø 22mm/0.87"
Fixture DB-LED is small but fine. The subtle point of light is suitable for in staircases and terraces, for example.

The EASY-LOCK is included as standard with this fixture. The cable length to this fixture is 60cm.

TIP: Consider an extension cable.
  • Produces a warm white sparkling, bright light

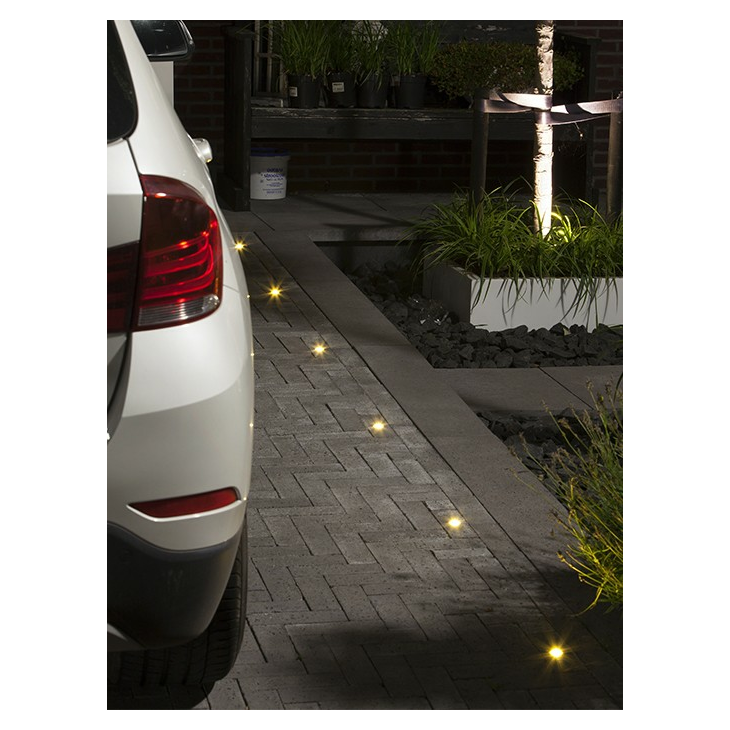

  • Designed for illuminating the edges of a driveway or deck
  • Drive-over
Installation advice:

A DB-LED every 1½ to 2 meters

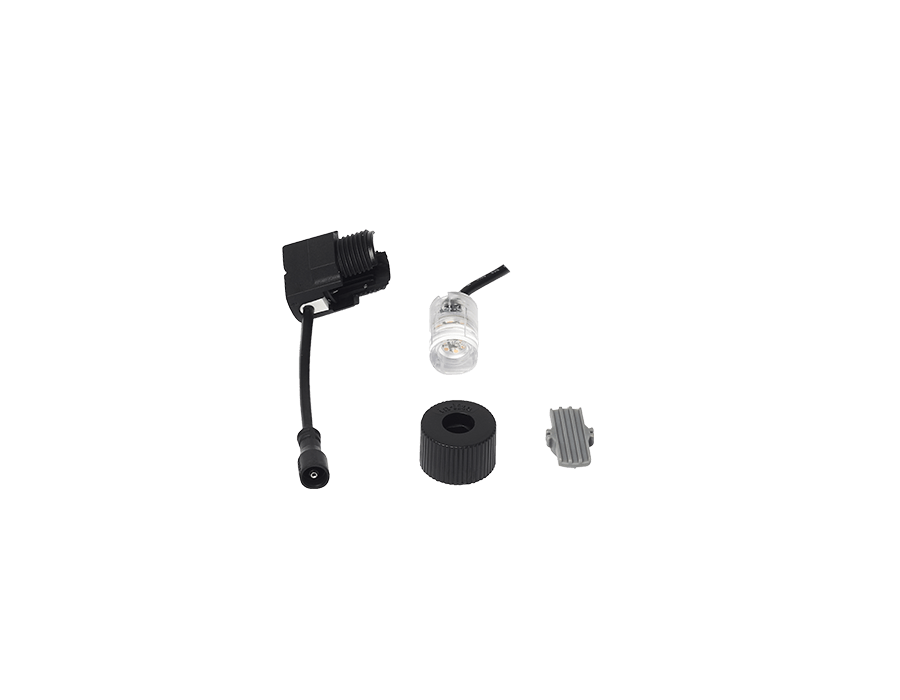

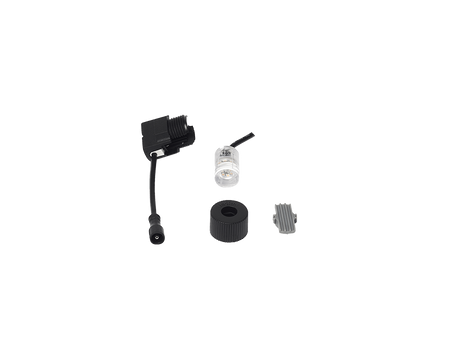

IN THE PACKAGE
INCLUDED IN PACKAGE

-1x EASY LOCK
-60 cm Fixture cable

The DB-LED fixture is small, but refined. The subtle point of light is also visible during the day and therefore suitable for use in, for example, stairs and decks. For a special effect, install several spotlights randomly in the path through your yard.

Installation Advice
This ground light is installed in a 22.4 mm diameter hole in wood (wood drill) or stone (cooled diamond-tipped drill). A dealer or gardener can do this for you. Note: to avoid problems with the electronics, only install the fixture in a hole that has been drilled straight and in the correct size. Watch the instructional videos on the installation tips page for information on installing the in-lite system.


Product Specifications

  • Article Number: 10102402
  • Application: Driveway, Garden Path, Stairs
  • Mounting Depth:
    • Inches: 1.4961
    • Millimeters: 38
  • Recessed Depth:
    • Inches: 1.4961
    • Millimeters: 38
  • CRI (Color Rendering Index): 94
  • Diameter:
    • Inches: 0.8661
    • Millimeters: 22
  • EAN Code: 8717051002366

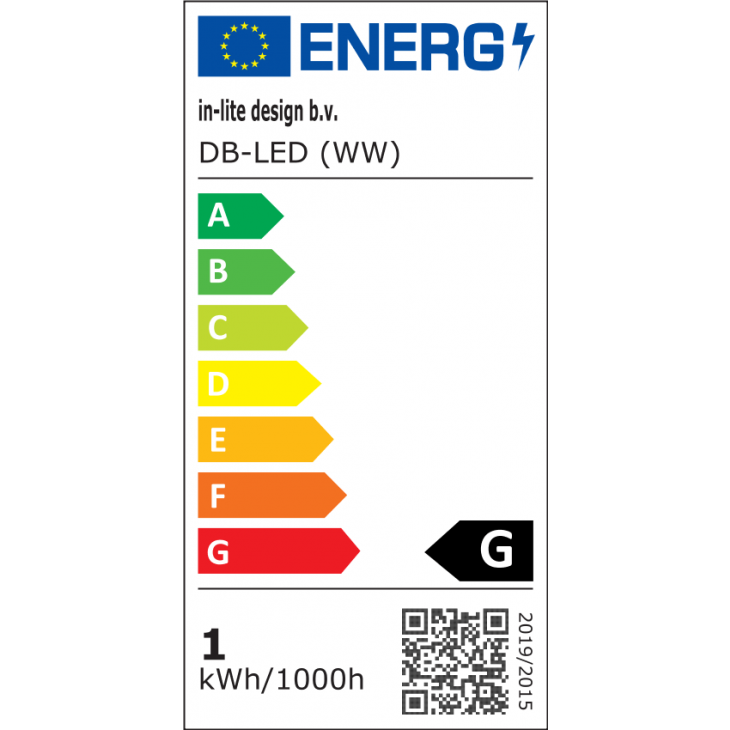

  • Energy Label: G
  • Height:
    • Inches: 1.2598
    • Millimeters: 32
  • IP Class: 67
  • Light Direction: Up
  • Light Type: Accent
  • Efficiency: 50 Lumen/Watt
  • Net Luminous Flux: 25 Lumen
  • Power Consumption: 0.5 W
  • Suitable for Processing in: Concrete, Natural Stone, Wood
  • Article Group: Integrated
  • Voltage: 12 Volt
  • VA Value: 0.5
  • Color Temperature: 2850K
  • Luminous Intensity: 6.4 Cd
  • Power Factor: 1
