In-Lite Dot 22

See Shipping & Availability
SKU: 10101710
$61.53 CAD
Share your thoughts and inspire others! Connect with us on social media or start a conversation today.

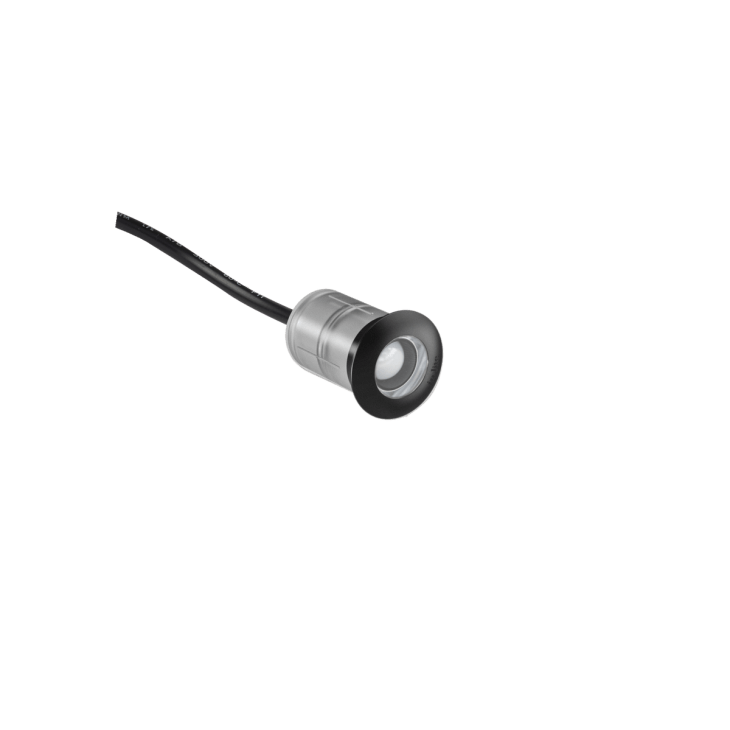

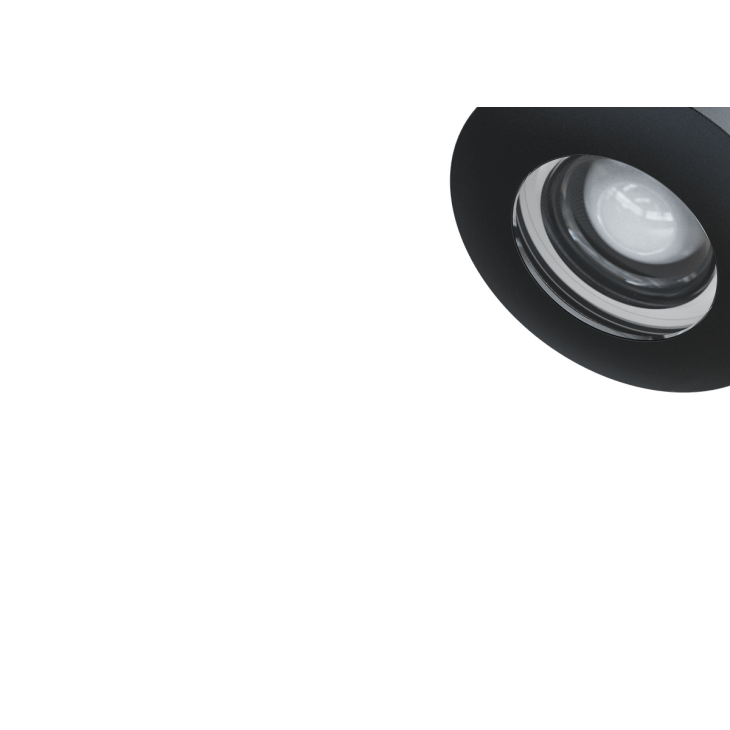

DOT 22

Ground spotlight - Ø 22 mm

Illuminating your driveway or garden path with a small, versatile ground spot? DOT 22 is ideal for creating better visibility and an enchanting light image. Place DOT 22 every 1.5 metres for best results. Prefer to create a playful effect? DOT is available in 60 mm and 22 mm. With the three different colored rings, you can complete this ground spotlight in style.

DOT is suitable for all HUBs, including SMART HUB-300.

  • Available in four variants
  • Combinable with DOT
  • Also suitable for SMART HUB-300

Installation Advice:

Ground spotlight - Ø 22 mm

Want to stylishly illuminate your driveway or garden path with a compact, versatile ground spotlight? DOT 22 is perfect for improving visibility and adding an enchanting look to your outdoor space. For optimum effect, place DOT 22 every 1.5 metres.

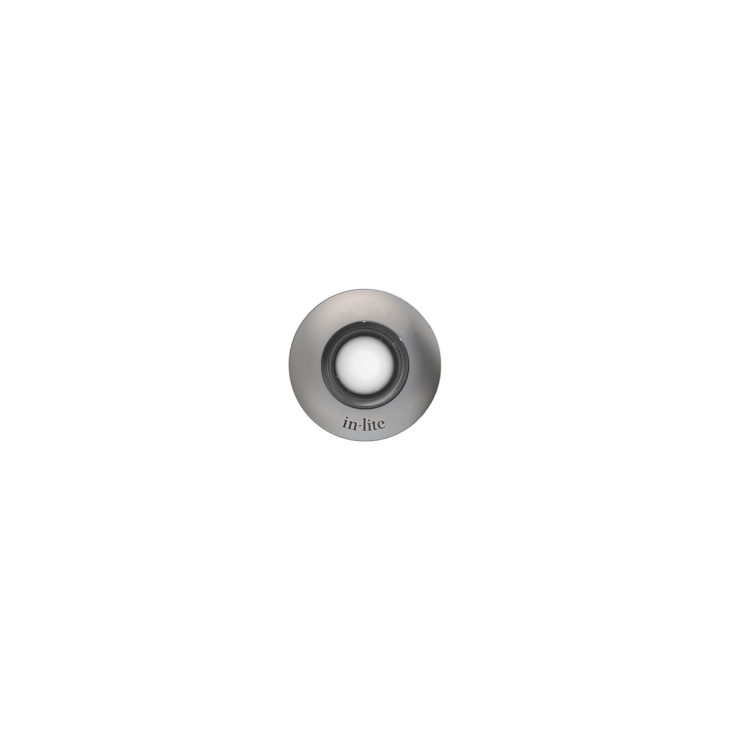

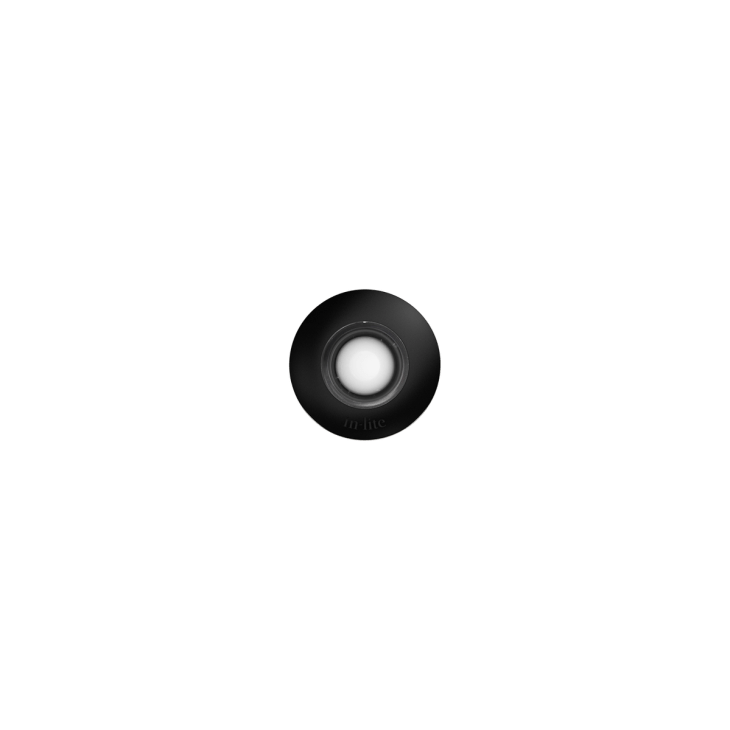

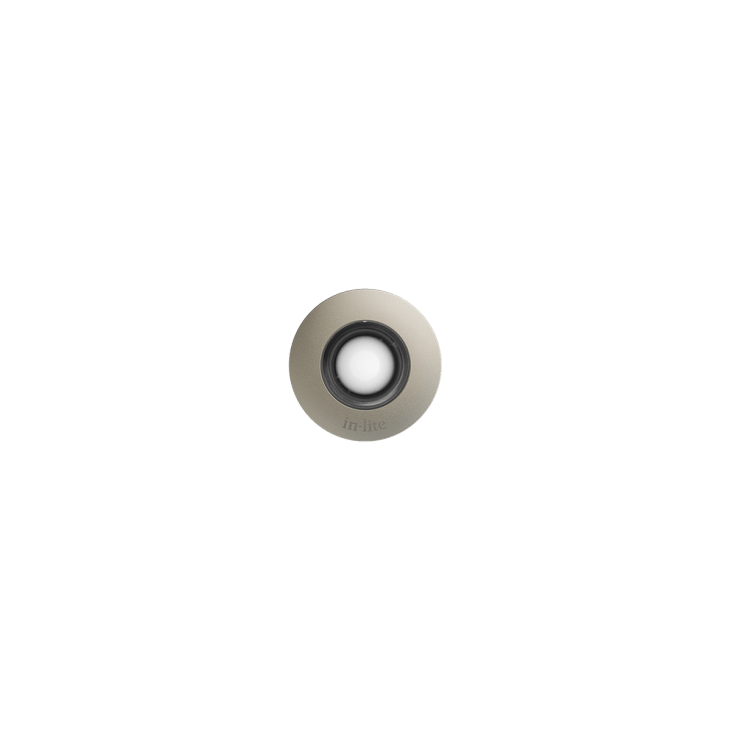

Want a more playful lighting effect? Then choose from 22 mm or 60 mm sizes. DOT ground spots can be customised with rings in three different colours, allowing you to tailor them completely to your own taste. Black, Pearl Grey and Stainless Steel.

Moreover, DOT is the only ground spotlight in our range that is compatible with the SMART HUB-300. For detailed installation instructions, see installation advice.

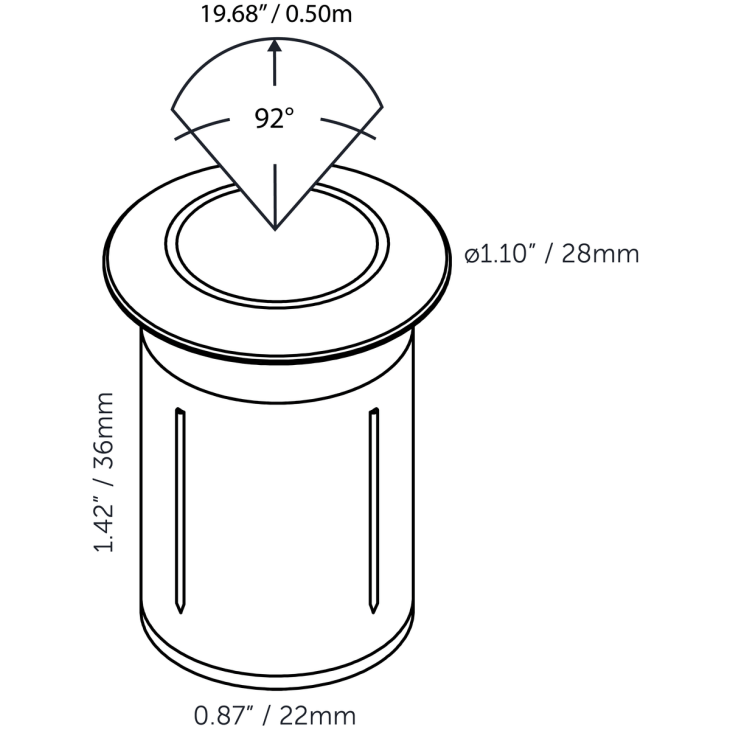

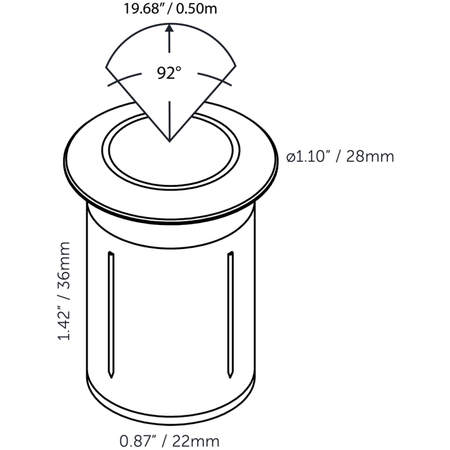

Specifications:

  • Art. nr.: 10101710

  • Application: Driveway, Garden path

  • Mounting depth: 50 mm (1.9685 in)

  • Recessed depth: 50 mm (1.9685 in)

  • CRI: 97

  • Diameter: 22 mm (0.8661 in)

  • EAN code: 8717051006562

  • Energy label: G

  • Height: 32 mm (1.2598 in)

  • IP class: 68

  • Light direction: Up

  • Light type: Direct

  • Efficiency: 6 Lumen/Watt

  • Net luminous flux: 2 Lumen

  • Order unit: 6

  • Power: 0.36 W

  • Processing: Concrete, Wood

  • Article group: Integrated

  • Voltage: 12V

  • VA value: 0.5

  • Color temperature: 2850K

  • Kilowatt hour: 1

  • Luminous intensity: 0.8 Cd

  • Power factor: 0.6

Installation Advice

DOT should be installed in a 22 mm diameter hole. This can be done in wood (with a wood drill) or in stone (with a cooled diamond drill). A dealer or landscaper can carry out this installation for you. Just make sure the hole is drilled straight and exactly the right diameter to avoid problems with the lighting's electronics.

Unlike FUSION 22, HYVE 22 and DB-LED, DOT 22 is compatible with SMART HUB-300. The rest of the ground spots connect to: HUB-50, HUB-100 and SMART HUB-150.
