in-lite Puck 22

In stock
SKU: 10104175 Barcode: 8717051004346
$65.52 CAD
Color
Share your thoughts and inspire others! Connect with us on social media or start a conversation today.

PUCK 22

PUCK fixtures shine all around and provide a subtle, non-glare light. Available in two sizes (Ø 22mm & Ø 60mm), the fixture is ideal for use as indicator lighting along paths, patios and driveways.
  • Produces a subtle radiating light on all sides
  • Designed for illuminating the edges of a driveway, walkway or deck
  • Drive-over
Installation advice:

A PUCK 22 every 1½ to 2 meters

INCLUDED IN PACKAGE

  • 1x EASY LOCK
  • 60 cm Fixture cable
  • Baffle plate

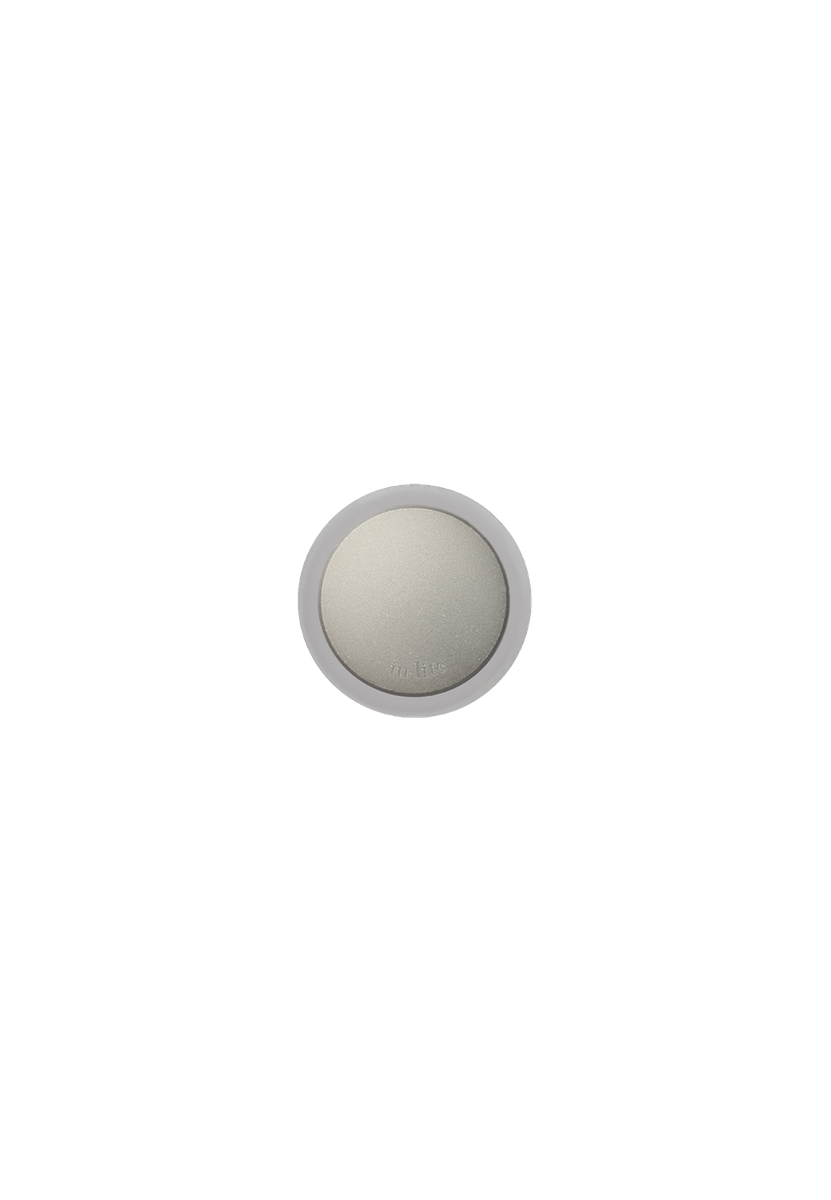

The PUCK 22 12V small ground light is perfect as subtle indication lighting for along your driveway, walkway, duckboards or jetty. The PUCK 22 has a diameter of 22 mm and an anodized aluminum cap in two different colors. The light radiates from the ground lights on the side, making it visible from a long distance. The non-glaring light also makes the PUCK 22 perfect for creating ambiance. The PUCK series is available in two different formats and colors: PUCK (DARK) has a diameter of 60 mm, while PUCK 22 (DARK) has a diameter of 22 mm.

Installation advice
You process this soil pot in a hole in wood (wood drill) or stone (cooled diamond drill) with a diameter of 22 mm. A dealer or gardener can take care of this for you. Attention! Install the fixture only in a straight drilled hole in the right size to ensure that the spot is properly clamped without damaging the house. Handy tapping plate PUCK 22 (DARK) comes with a tapping plate (60x60x5 mm). You use it during assembly to prevent damage to the anodized cap.

Product Specifications:

  • Article Number: 10104175
  • Ideal Applications: Decks, Driveways, Fences, Pathways, and Stairs
  • Mounting Depth: 2.1654 inches
  • Recessed Depth: 55 mm
  • Color Rendering Index (CRI): 96
  • Diameter: 1.378 inches / 35 mm
  • Color: Black
  • EAN Code: 8717051004346
  • Energy Efficiency Label: G
  • Height: 1.4567 inches / 37 mm
  • IP Rating: IP67 (resistant to dust and water for outdoor use)
  • Light Direction: 360-degree illumination
  • Light Type: Diffuse
  • Power Consumption: 0.6 W
  • Compatible Surfaces: Concrete, Grass, Gravel, Natural Stone, Wood
  • Category: Integrated Lighting
  • Voltage: 12V
  • VA Rating: 0.6
  • Color Temperature: 2900 K
  • Luminous Intensity: 0.45 Candela
  • Power Factor: 1

This black, compact fixture provides all-around, soft diffuse lighting, making it an excellent choice for outdoor environments, blending durability with energy-efficient performance.
