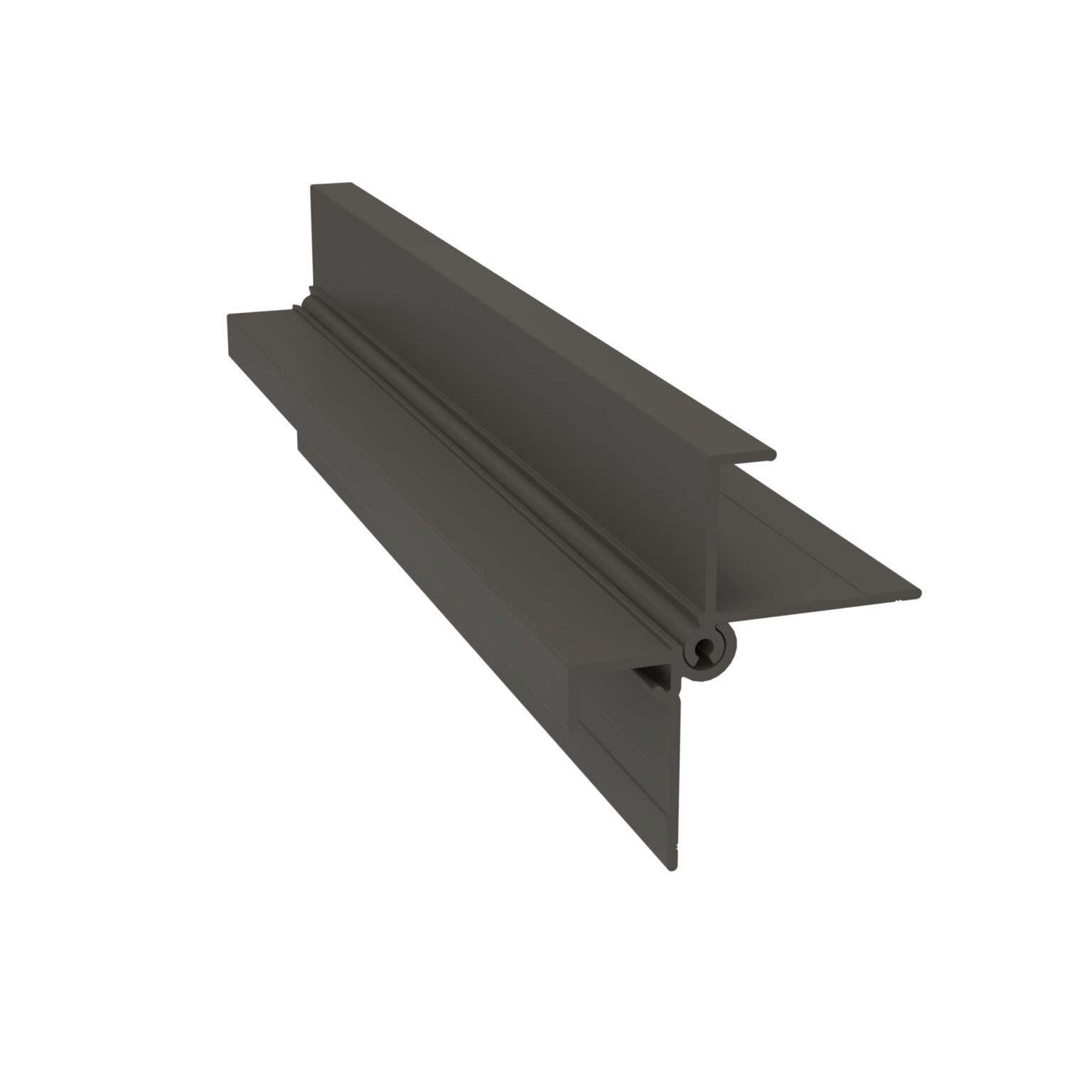

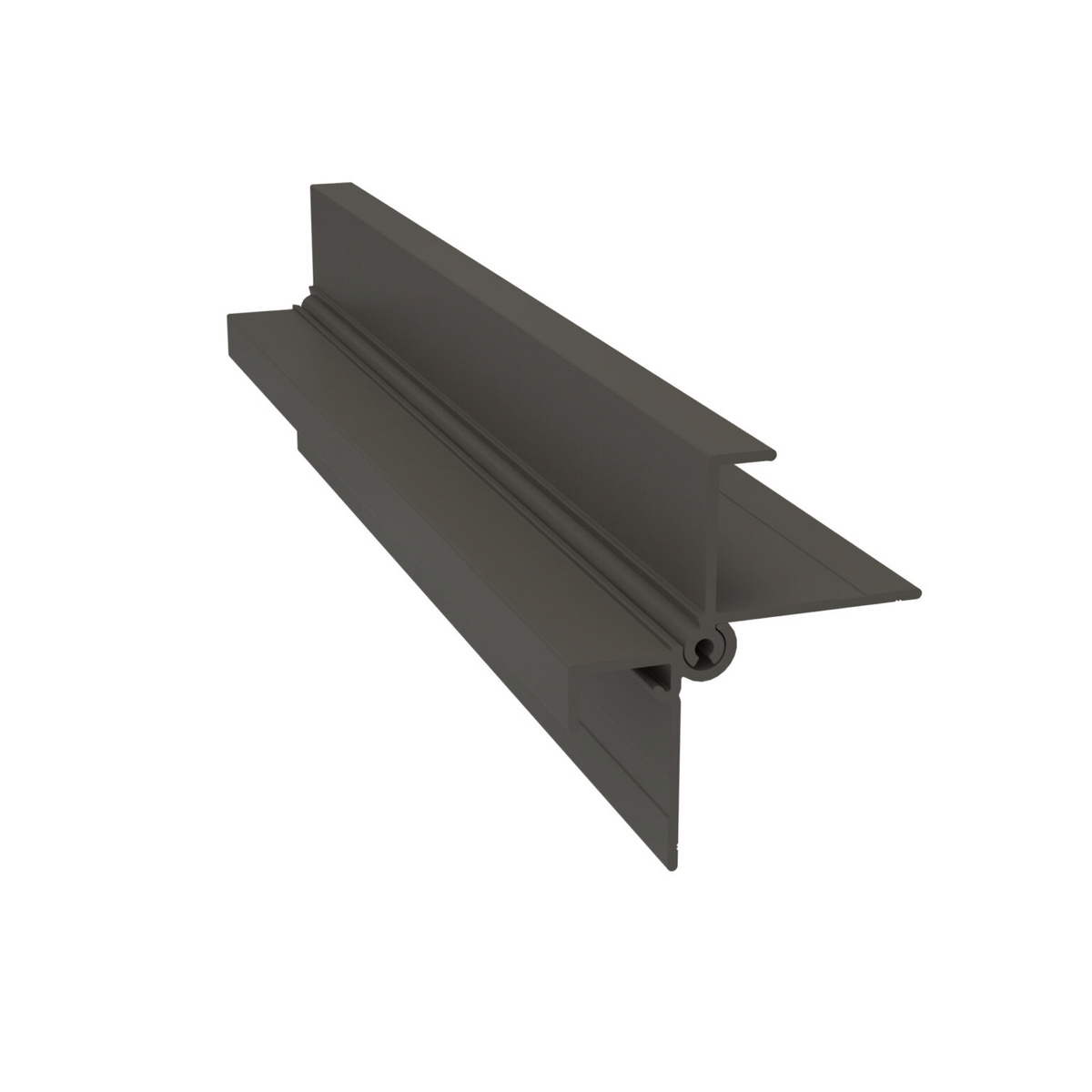

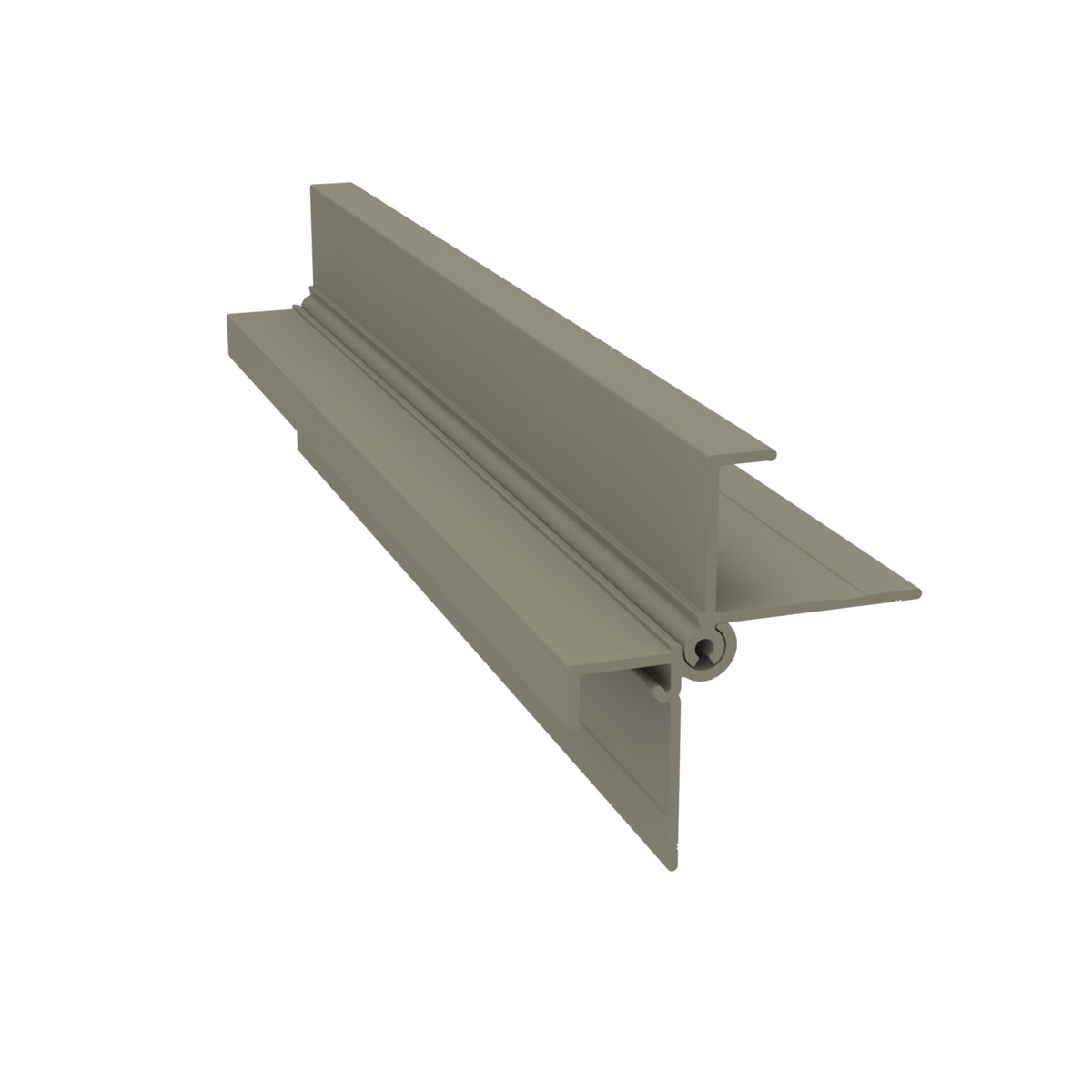

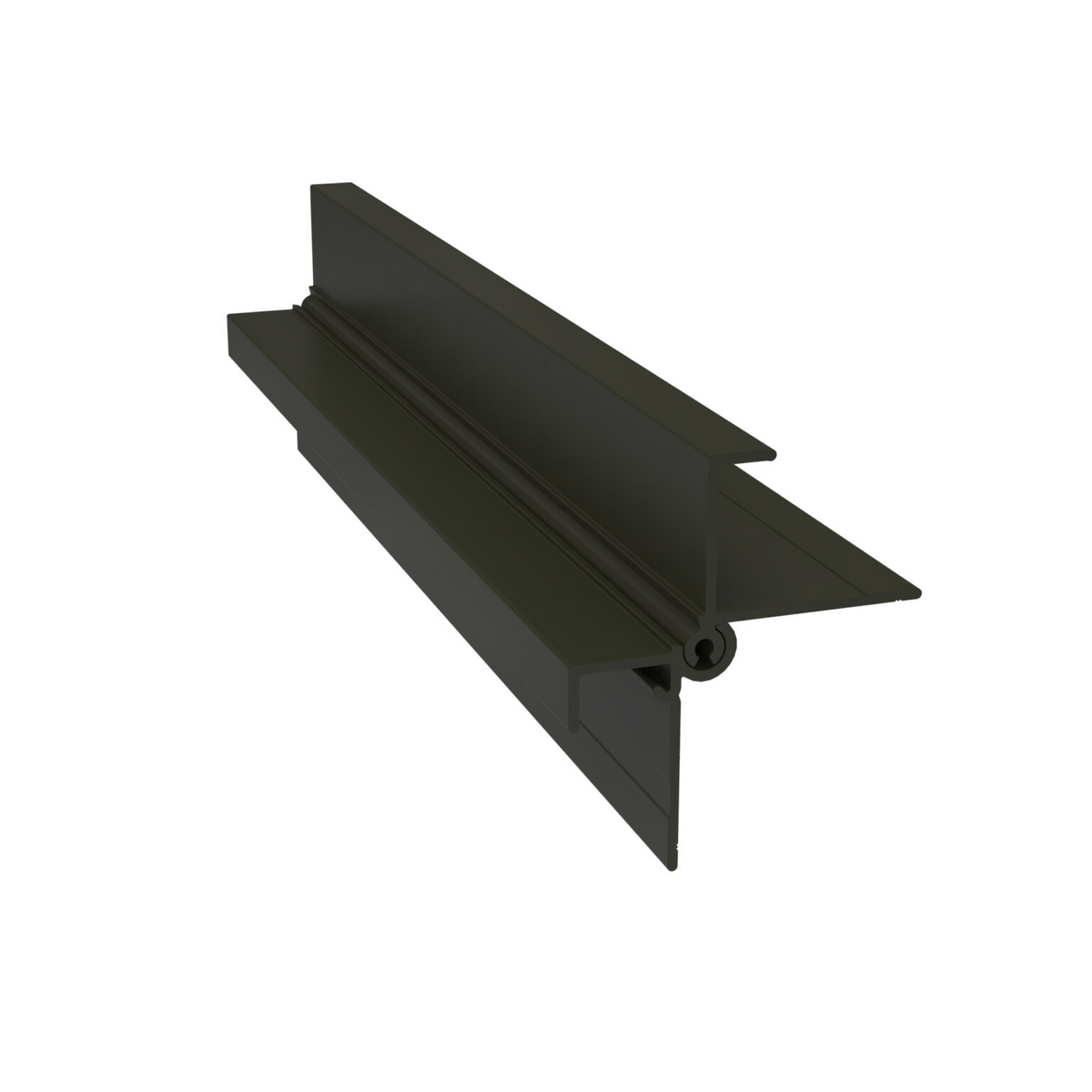

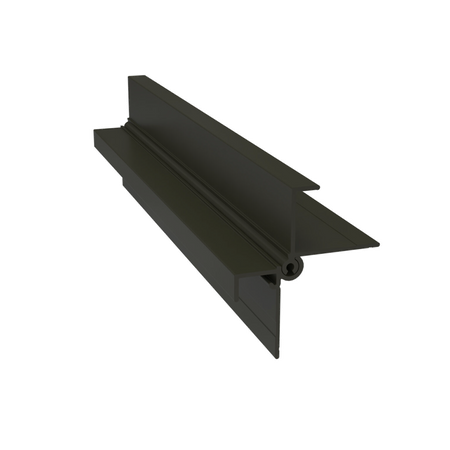

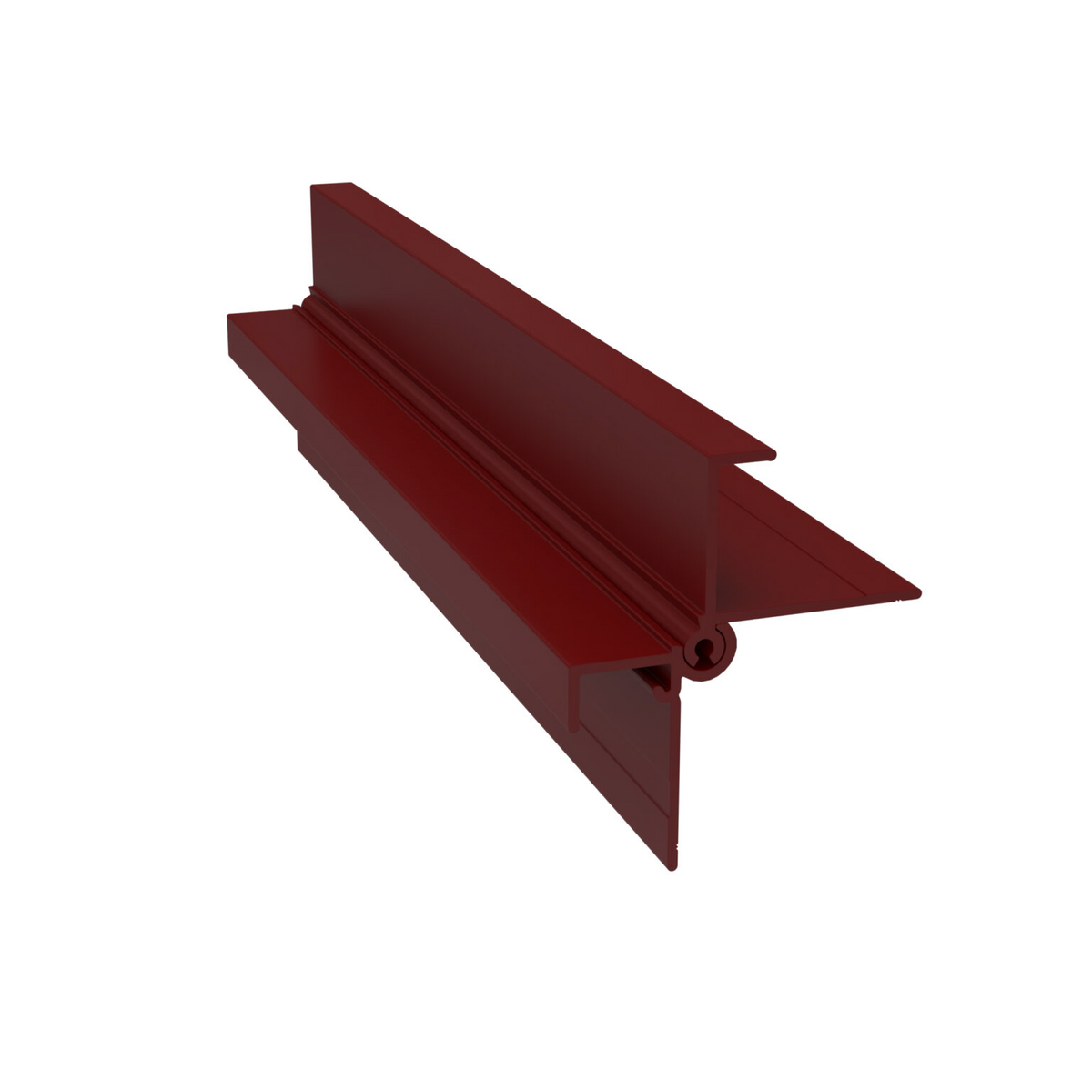

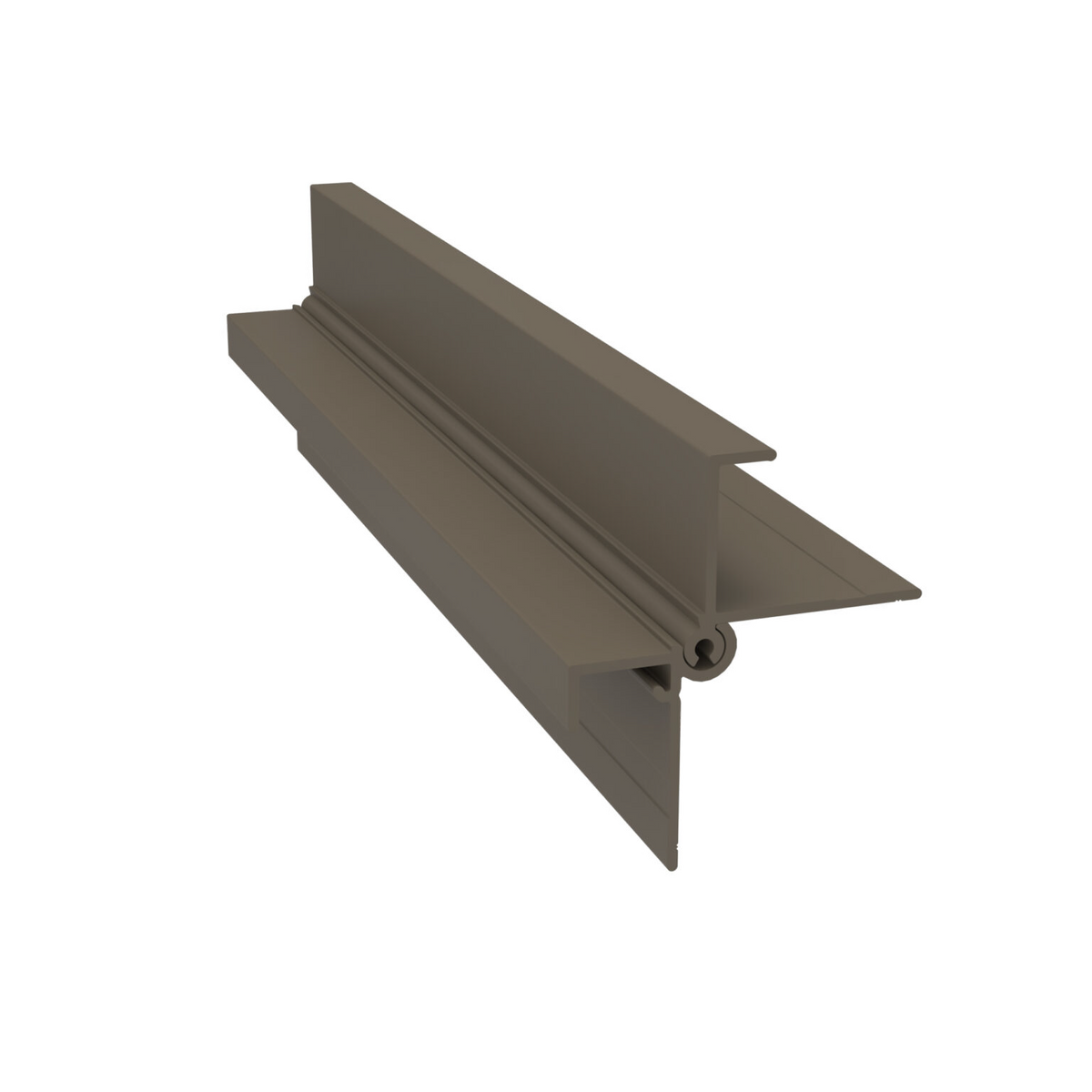

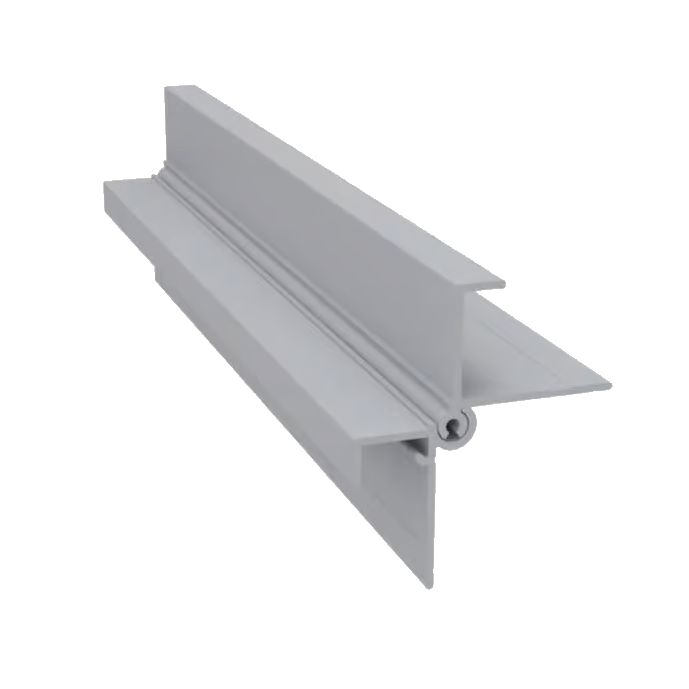

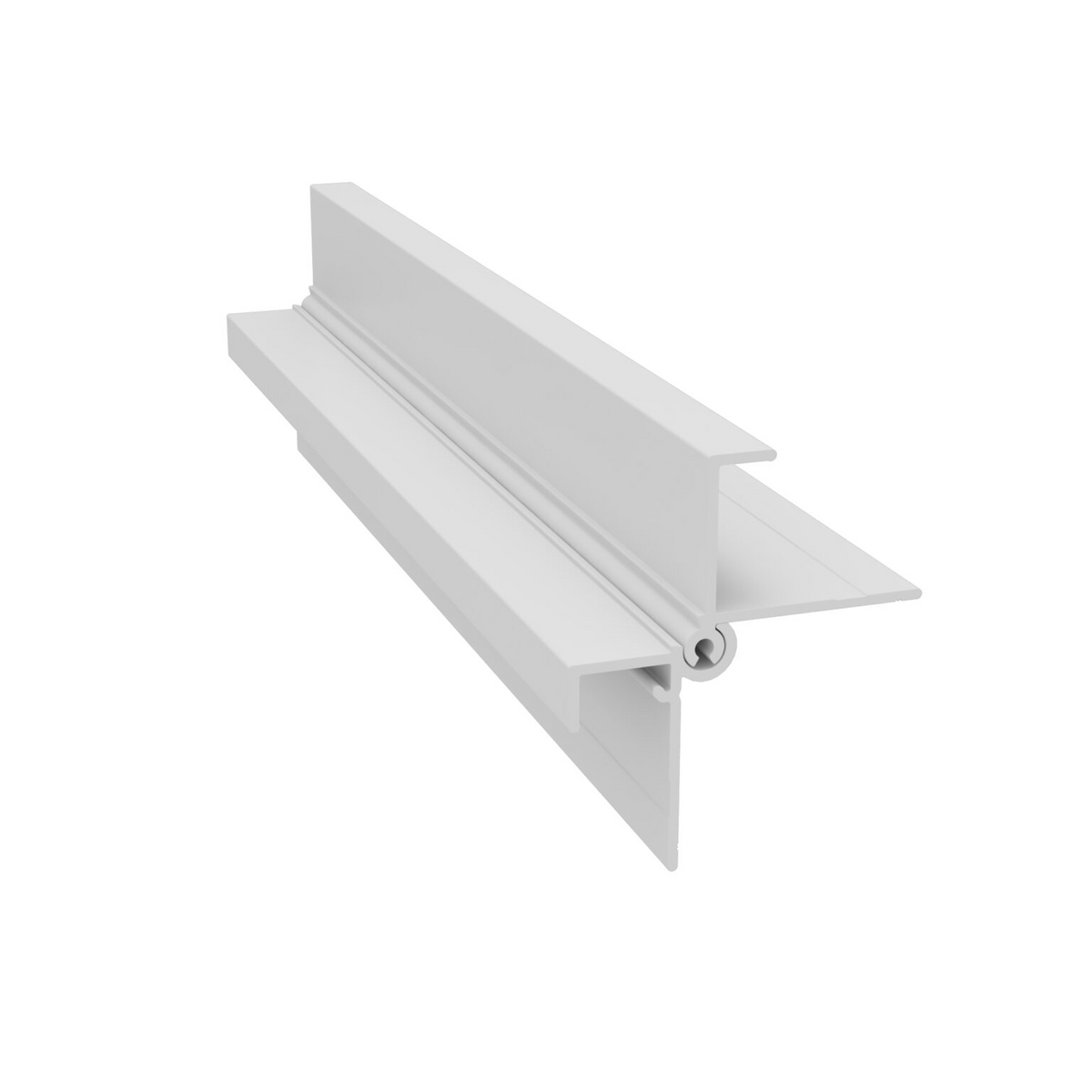

Light Trim Adjustable Outside Transition Corner V294

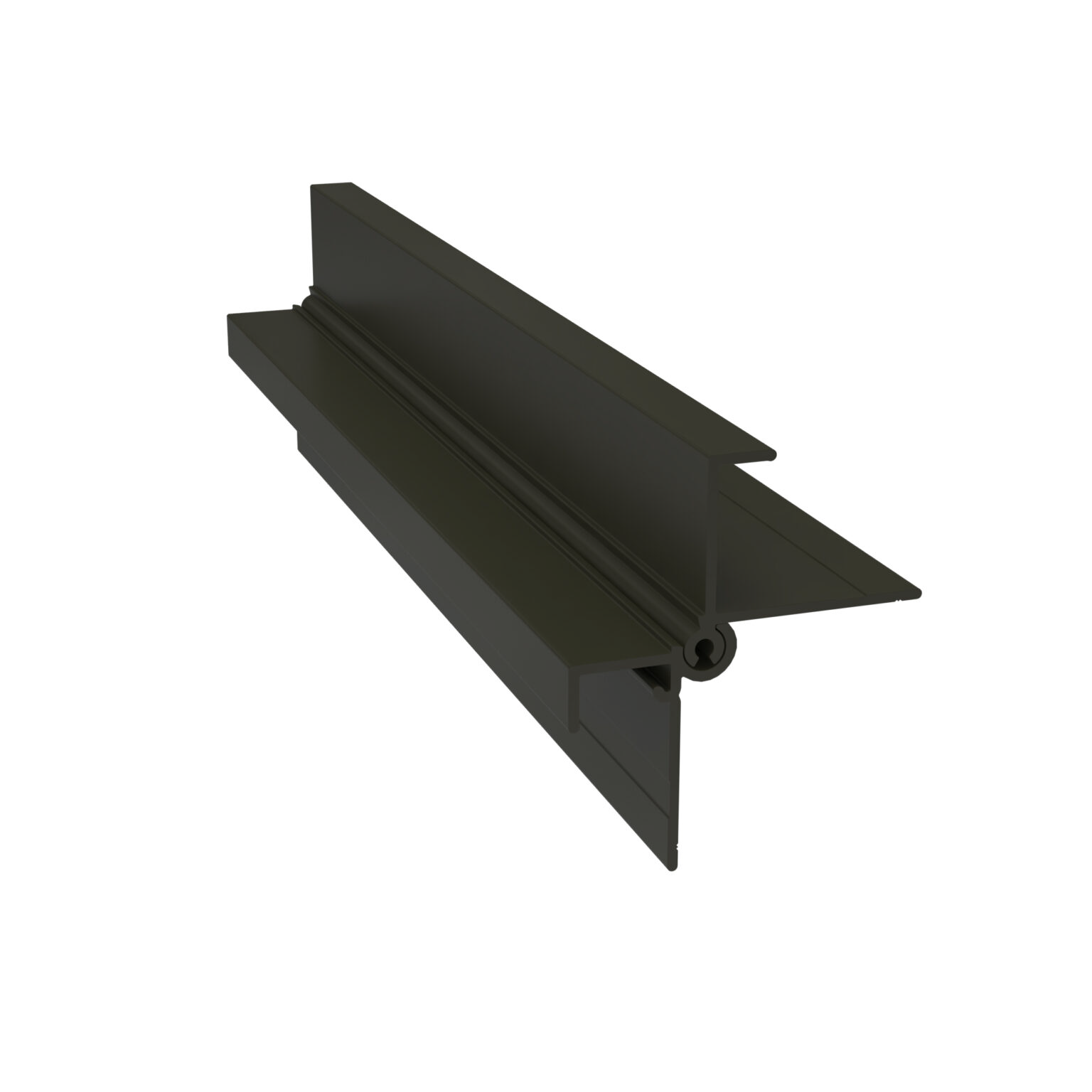

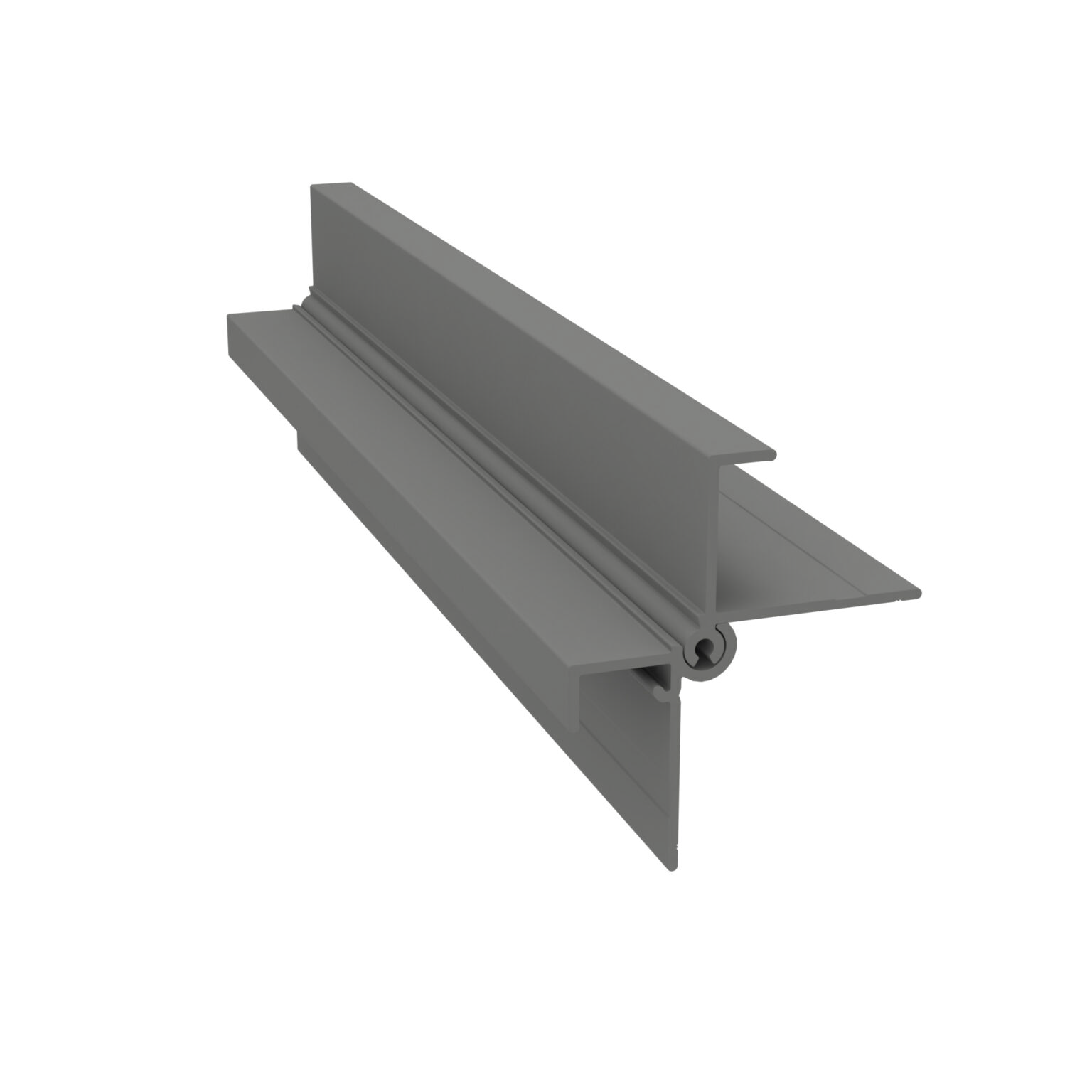

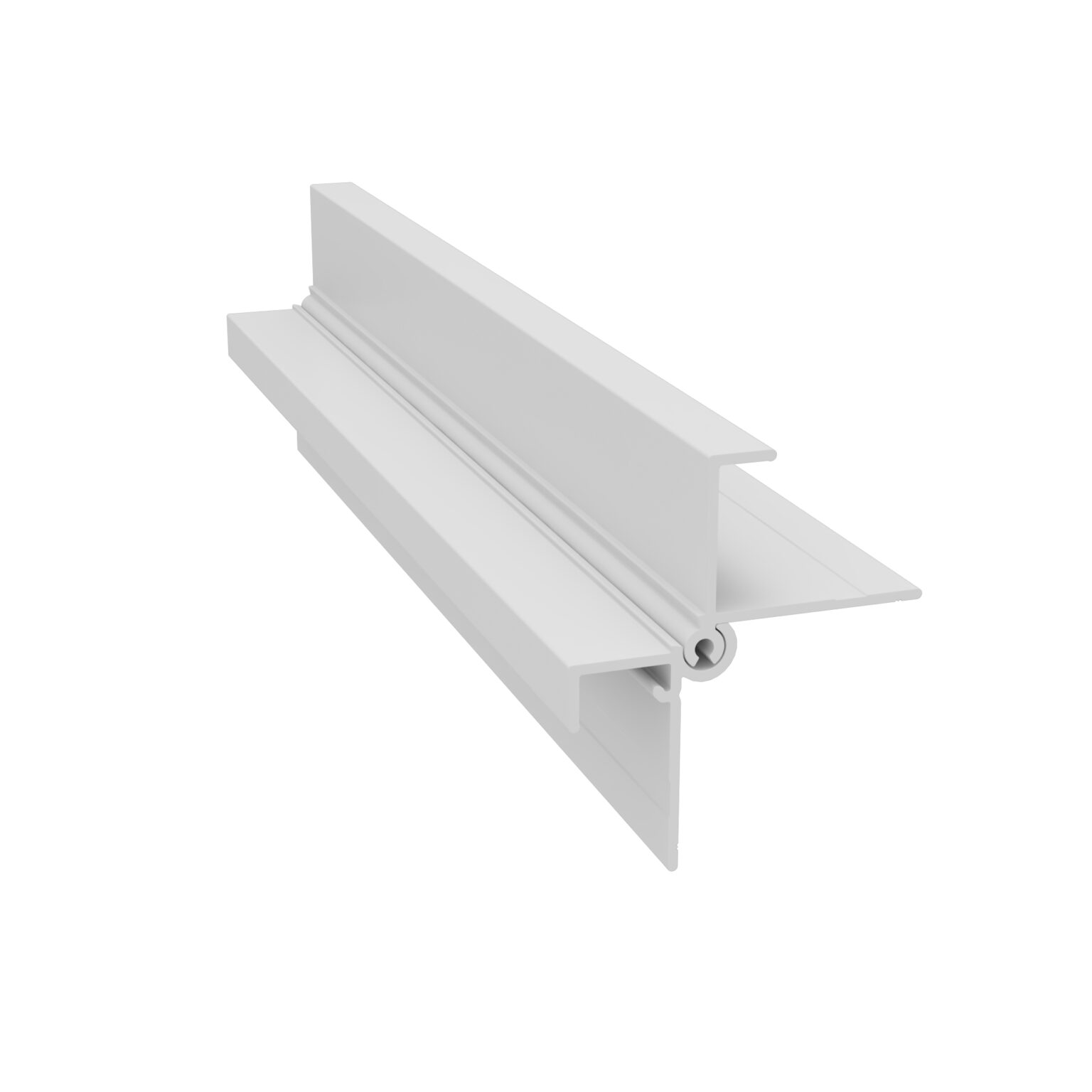

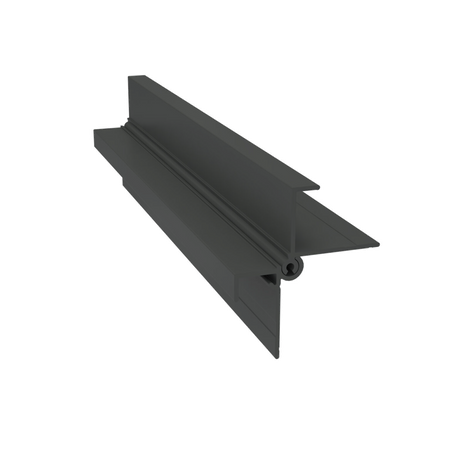

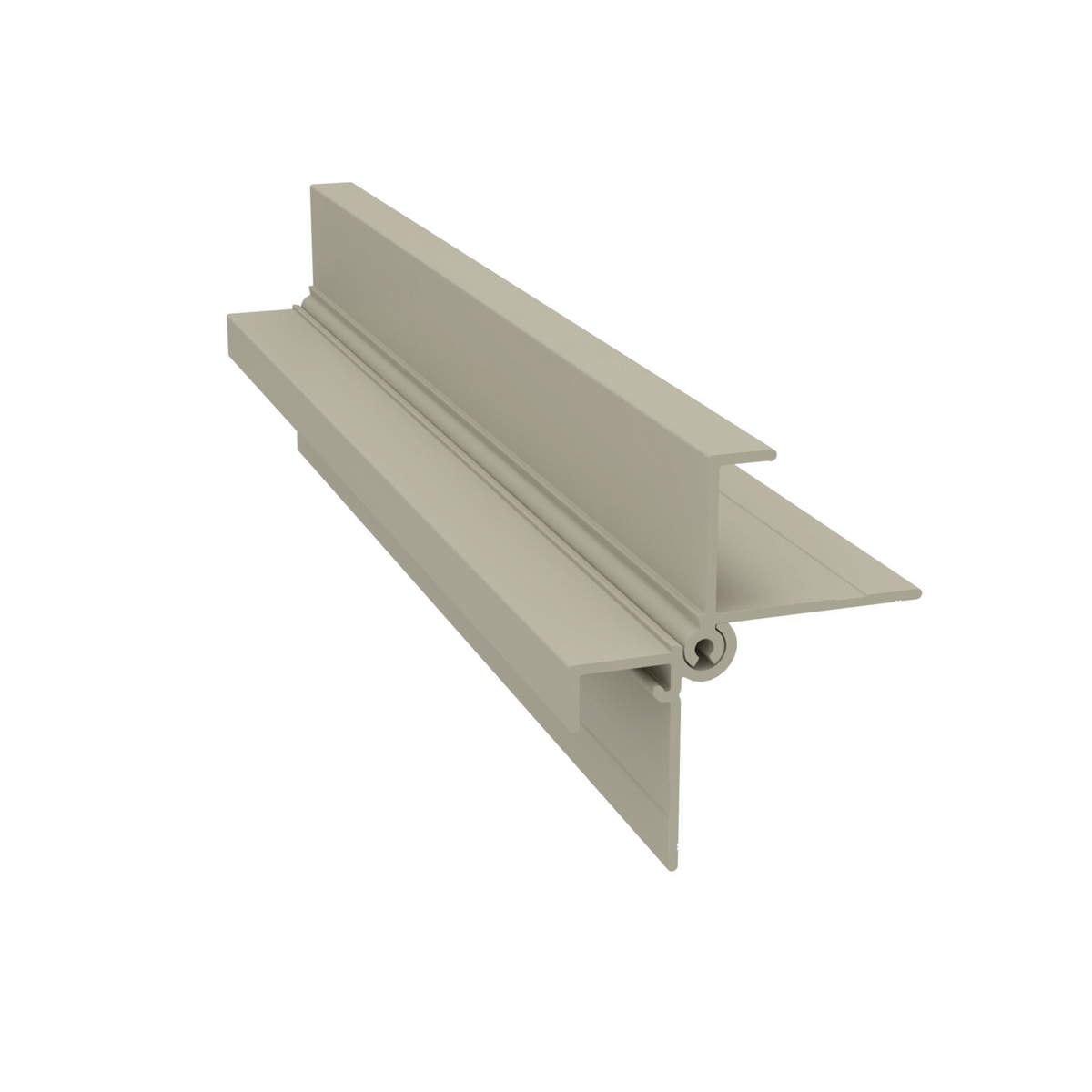

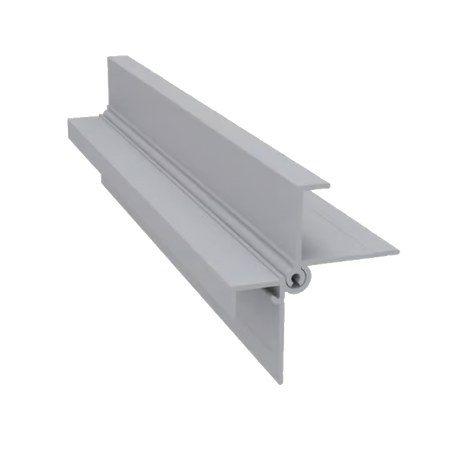

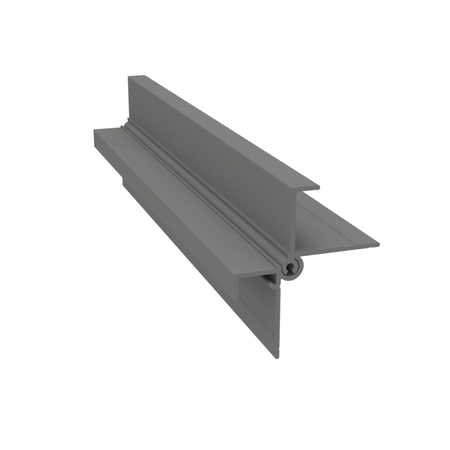

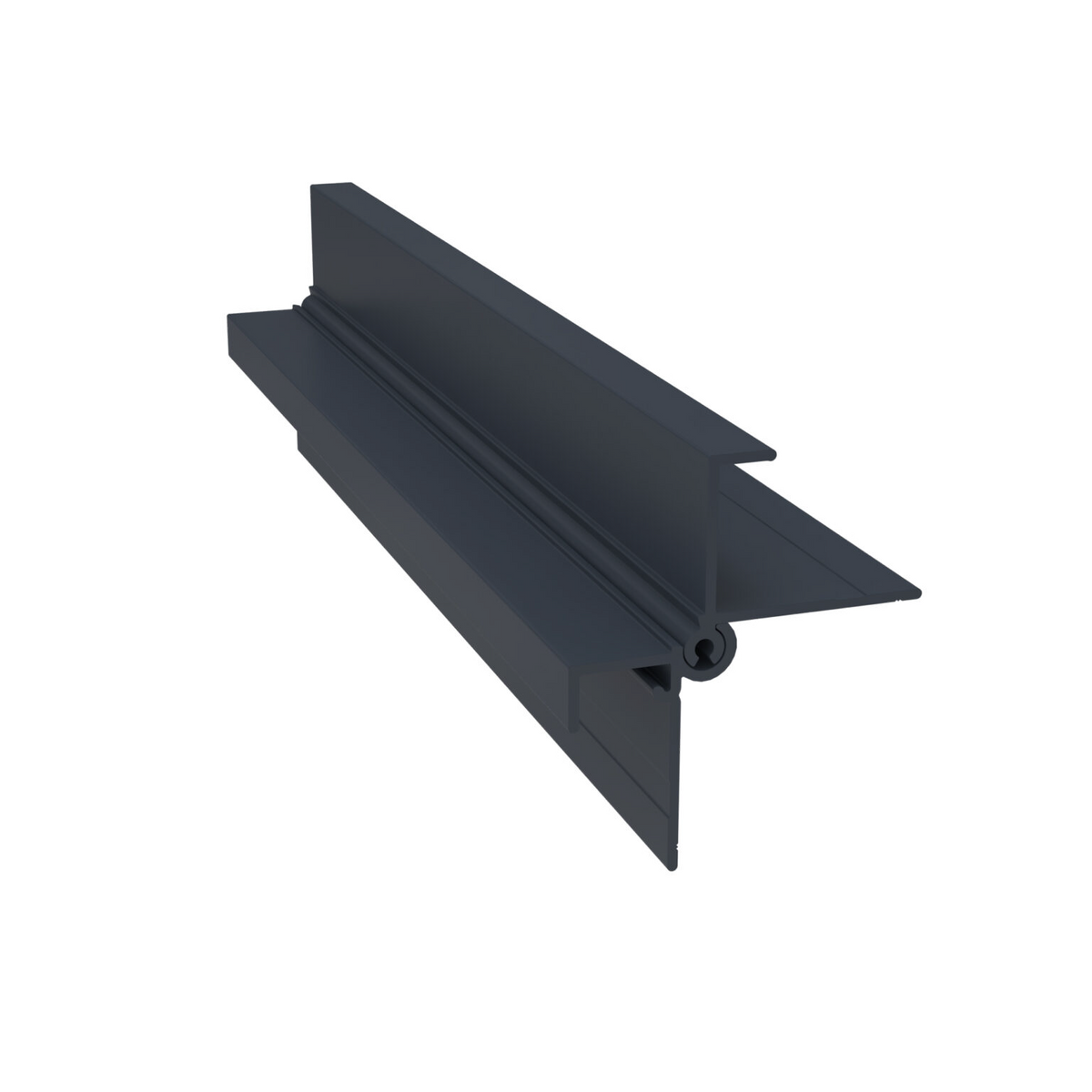

The Light Trim Adjustable Outside Transition Corner V294 is a flexible, high-performance trim designed for outside corner transitions between different cladding materials or at varying wall angles. Its adjustable profile accommodates non-standard angles, making it ideal for custom designs and modern architectural details.
Crafted from extruded aluminum and finished with a durable AAMA 2604/2605-compliant powder coat, the V294 ensures long-lasting moisture, UV, and corrosion resistance. Available in a wide range of colour options, it’s a perfect choice for residential or commercial projects that require both performance and design flexibility.
Key Features:
- Adjustable outside corner for mixed-material transitions
- Accommodates angled walls or non-90° corners
- Ideal for panel-to-lap or panel-to-panel transitions
- Made from strong extruded aluminum
- Powder-coated finish meets AAMA 2604/2605 standards
- Weather- and corrosion-resistant for long-term use
- Available in multiple designer colour options
V294
V294 outside corner for angles between 90° and 160° degrees is specially designed to make the transition between HardiePlank planks and HardiePanel fiber cement panels. The M shape will be the most discreet available.
Technical specifications
- Length: 3.048 m (120 po)
- Thickness: 1.4 mm
- Material: Aluminum 6360-T5
- Paint: PPG AAMA 2604
- Certified LEED® Canada v4
- Limited warranty: 20 years
- Made in Canada
All Light Trim colours are paint ready if you need a primed/paintable option.
Note: Lap Siding Trims are also compatible with profiles from the James Hardie Aspyre Collection, including Artisan Lock Joint, Artisan V-Groove, Artisan Bevel Channel, Artisan Square Channel, and Artisan Shiplap.
Custom Color options include tones from the James Hardie Dream Collection. A $150 setup fee applies for custom colors.
