Simpson Strong-Tie APBDSP Decorative Post Base Side Plate

Name: Simpson Strong-Tie APBDSP Decorative Post Base Side Plate
Brand: DeckMart Building Supplies
SKU: APVB44DSP
Price: 26.03 CAD
Availability: InStock

See Shipping & Availability

SKU: APVB44DSP

Regular price $26.03 CAD

Size 4x4 6x6 8x8 10x10

Coating ZMAX

Dimensions Nominal Rough

Product variants

Quantity

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

Eligible Collections

Post Bases & Footing attachment

Frequently Bought Together

Share your thoughts and inspire others! Connect with us on social media or start a conversation today.

Share on Facebook
X
Share on Pinterest

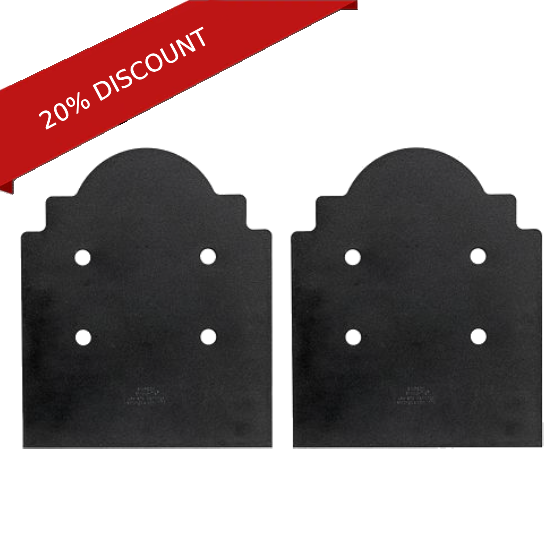

The Simpson Strong-Tie APBDSP Decorative Post Base Side Plate enhances the aesthetic appeal of your outdoor structures by providing a finished look to installed post bases. Ideal for projects like pergolas and patio covers, these side plates attach to the bottom of posts or columns and complement the Outdoor Accents® Mission Collection®.

Constructed from 12-gauge steel with a ZMAX® galvanization and black powder-coat finish, they offer superior corrosion resistance for exterior and treated-wood applications.

Designed for use with nominal 4x, 6x, 8x, and 10x lumber, the side plates are installed flush to the top of the post-base strap legs, ensuring a seamless integration. Fasteners are sold separately, and each box contains two decorative side plates.

Finish

ZMAX^® with black powder coat

Ordering Information

Decorative side plates sold in boxes of 2

Coating

G90 Zinc Galvanized: The standard zinc coating (0.90 oz/sq. ft.) offers moderate corrosion resistance and is ideal for indoor or covered outdoor applications.
ZMAX®: Enhanced zinc coating (~1.85 oz/sq. ft.) provides superior corrosion resistance, perfect for outdoor or high-moisture environments, especially with treated wood.od.od.

Installation

APB44DSP is designed for use with nominal 4x and 4x rough lumber.
APB66DSP is designed for use with nominal 6x and 6x rough lumber.
APB88DSP is designed for use with nominal 8x and 8x rough lumber.
APB1010DSP is designed for use with nominal 10x and 10x rough lumber.
Install top of decorative side plates flush to top of post-base strap legs. Decorative side plates installed on APB post bases will be raised up 1/4" from the bottom of the post base, while installations on rough models will not.
Fasteners are sold separately.

When selecting Simpson Strong-Tie post bases, it’s essential to know the difference between rough and nominal lumber:

Nominal Lumber: Standard milled wood with smaller actual dimensions (e.g., a 4x4 measures 3.5" x 3.5"). Most post bases are designed for nominal sizes.
Rough Lumber: Unsurfaced wood retaining larger dimensions (e.g., a 4x4 measures 4" x 4"). Specialized post bases or oversized options are required.

Ensure a proper fit for secure fastening and structural integrity. Simpson Strong-Tie labels their post bases for compatibility with rough or nominal lumber. Always measure your lumber before selecting a base.
