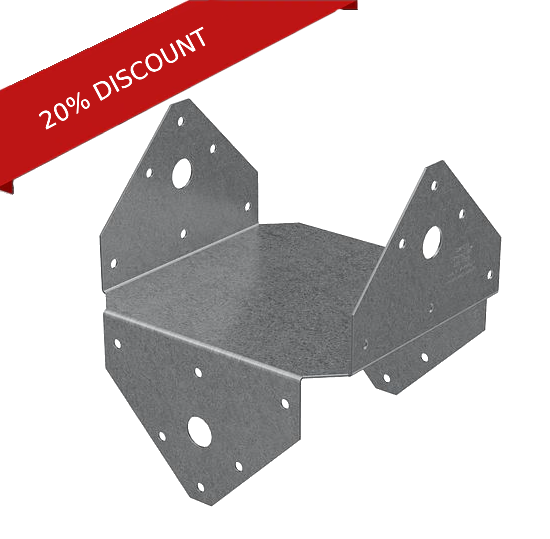

Simpson Strong-Tie BC Post Cap

The Simpson Strong-Tie BC Post Cap connects a beam to a post, providing uplift and lateral resistance in light-duty applications. It is constructed from 18-gauge galvanized steel, ensuring durability and corrosion resistance.

The BC Post Cap features opposing flanges that enhance lateral stability and is suitable for nominal and rough lumber sizes. It is installed using specified fasteners, such as 0.162″ x 3 1/2″ nails, and does not require bolts. This post cap is ideal for various projects, including decks and patio covers, where a secure post-to-beam connection is essential.

Key Features

• Opposing flanges provide increased lateral resistance
• Attains full allowable load using either common nail or pneumatic nail sizes
• Light-gauge material designed for light-duty applications

Installation

• Use all specified fasteners; see General Notes
• Do not install bolts into pilot holes
• Install with 0.162″ x 3 1/2″ nails or 0.162″ x 2 1/2″ nails
