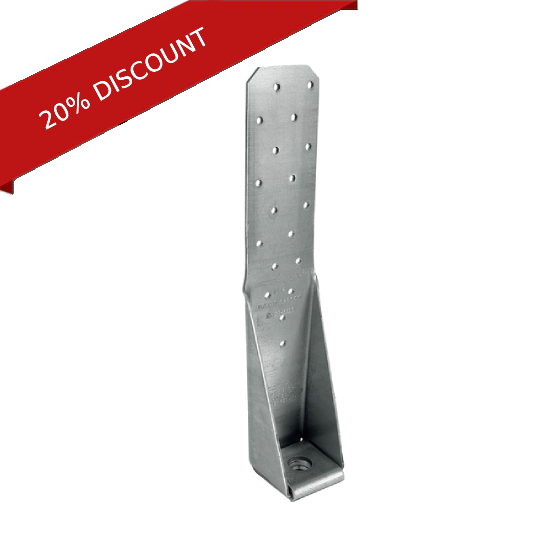

Simpson Strong-Tie HTT Heavy Tension Tie

The HTT is a high-strength solution for resisting tension loads in post-pour, wood-to-concrete connections. This heavy, single-piece formed tension tie is fastened with nails or Strong-Drive® SD Connector screws. The HTT has a four-ply formed seat and a design without rivets that does not require washers.

The HTTH6.5 heavy tension tie is an ideal solution for residential construction as well as light-framed wood commercial buildings. Tested per AC 155, the HTTH6.5 is the first nailed-on holdown to achieve up to 7,650 lb. allowable load, making it an economical solution when heavier loads are required.

Product Details

Key Features

• Optimized nailing pattern for better performance and less deflection

• Ideal for retrofit or new construction projects

• HTT5KT holdown is sold as a kit with the bearing plate, washer and Strong-Drive SD Connector screws

• Four-fold seat to reduce deflection

Material

• HTT: 11 gauge;


Finish

• Galvanized. May be ordered HDG.
