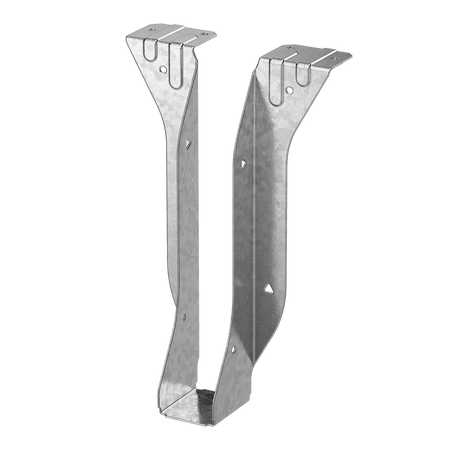

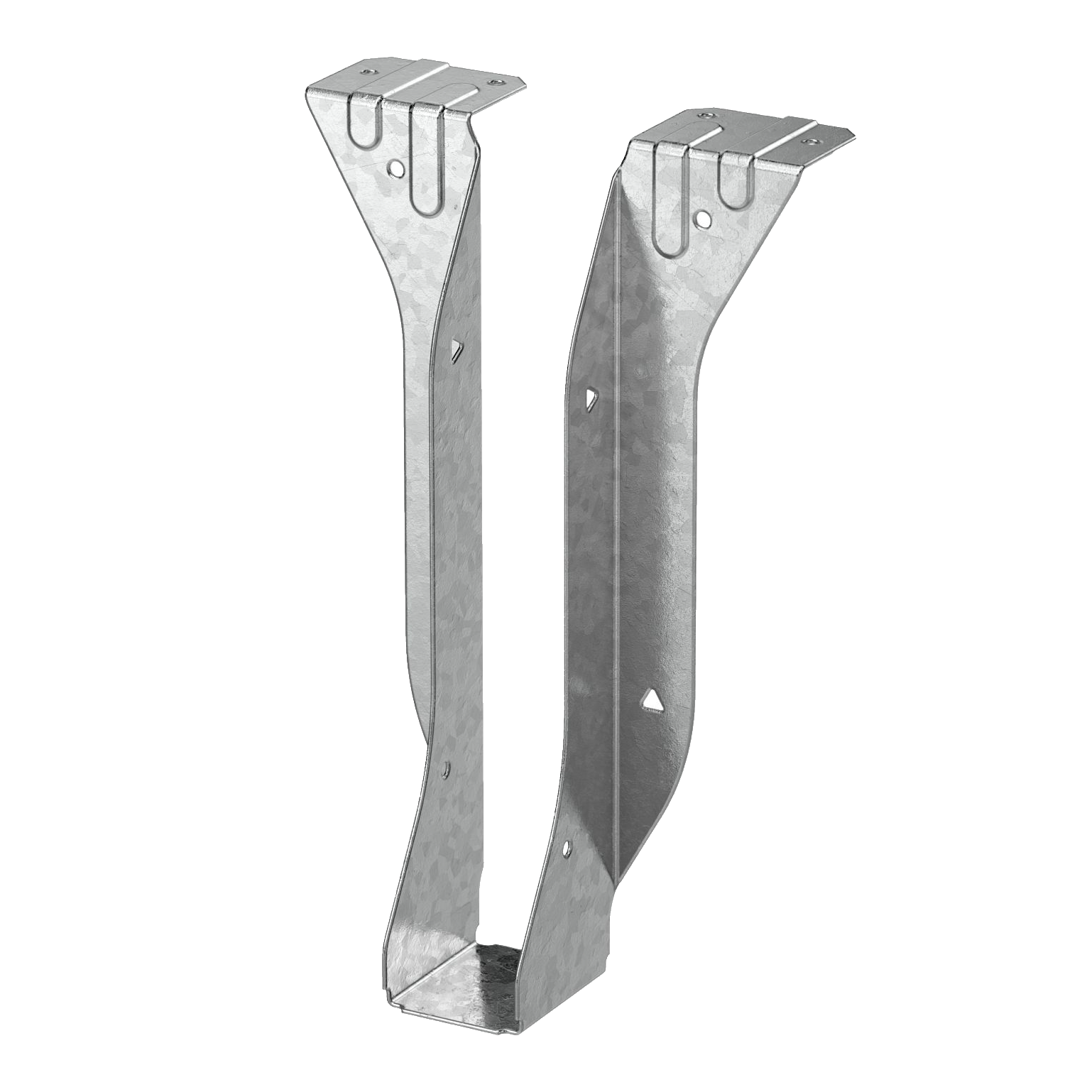

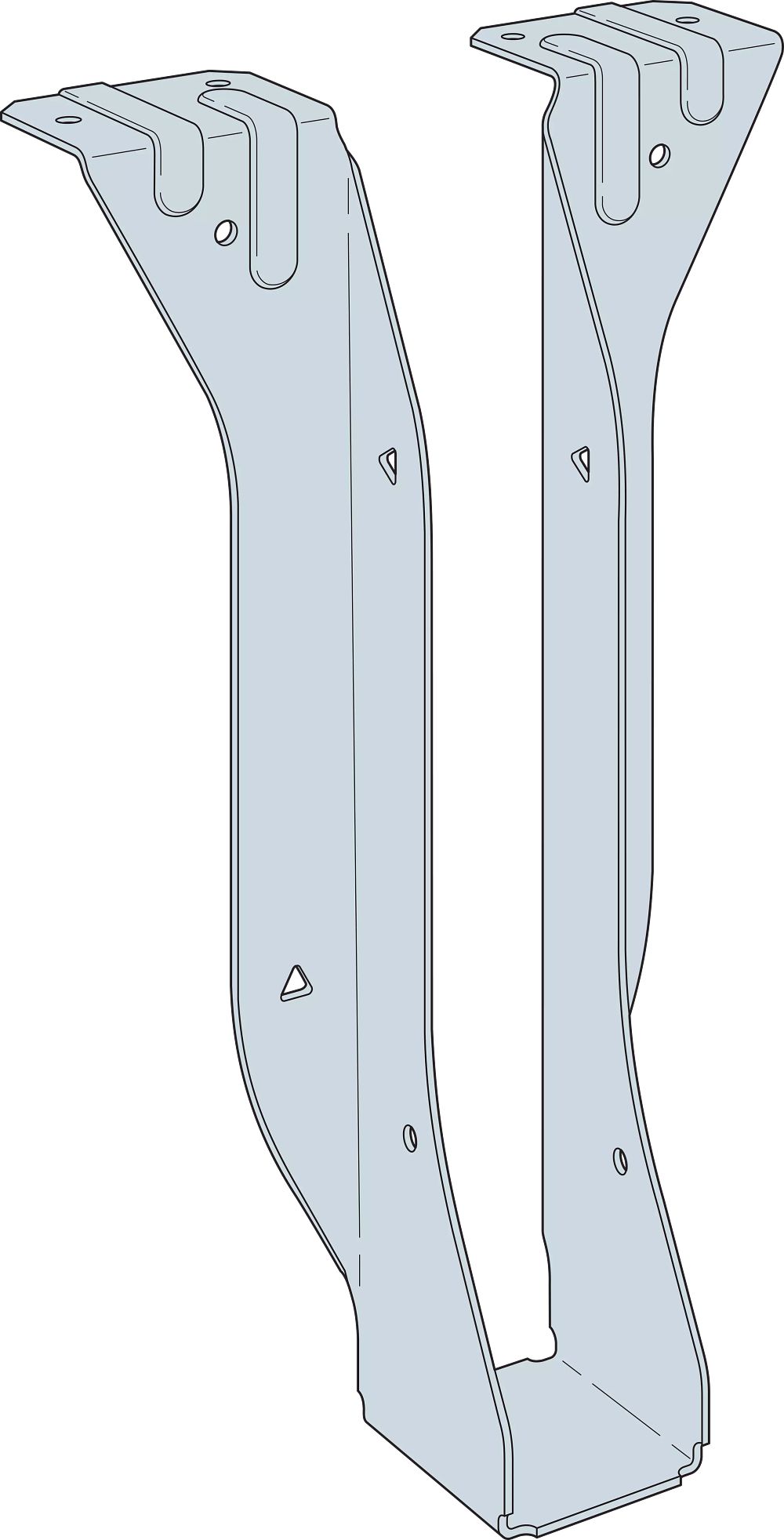

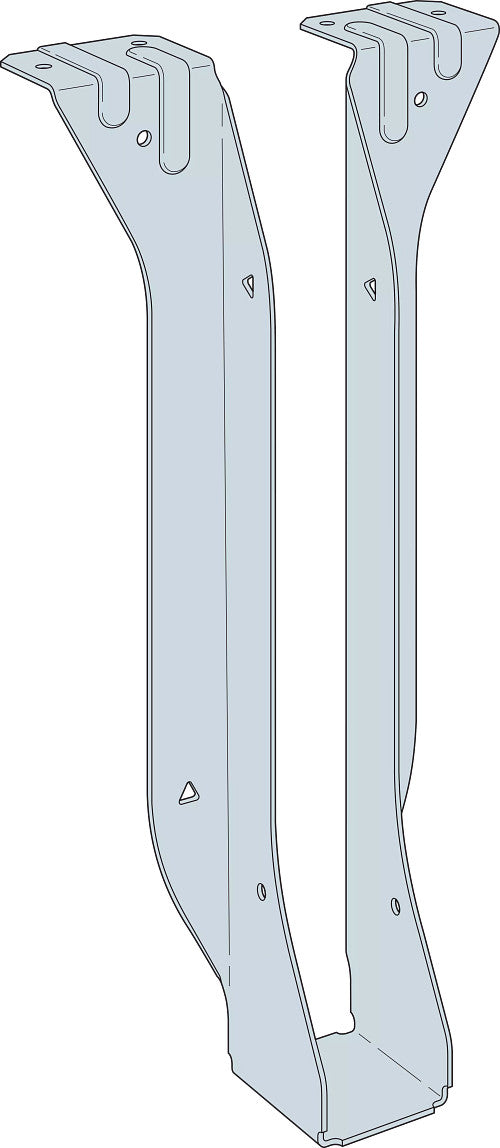

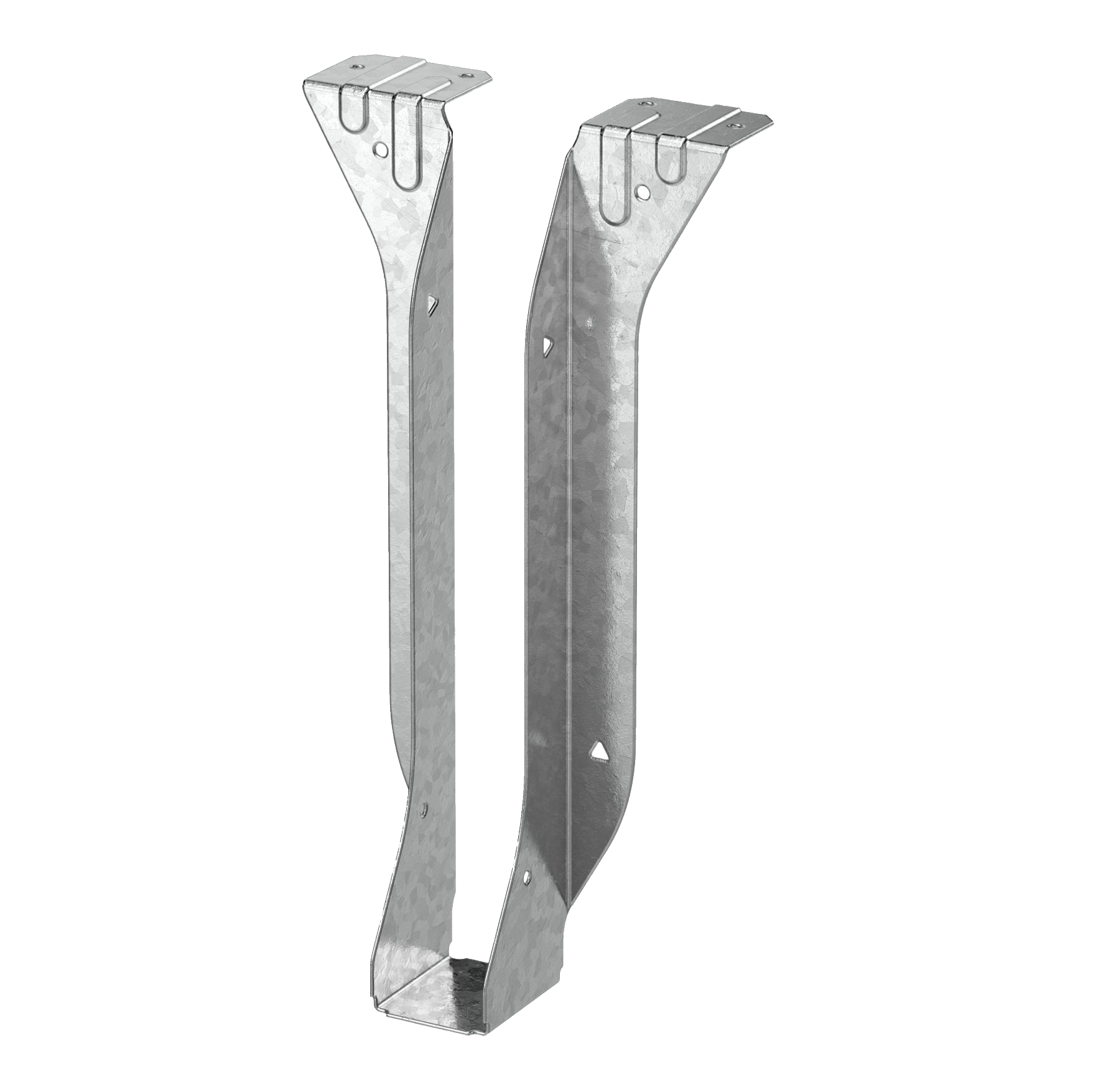

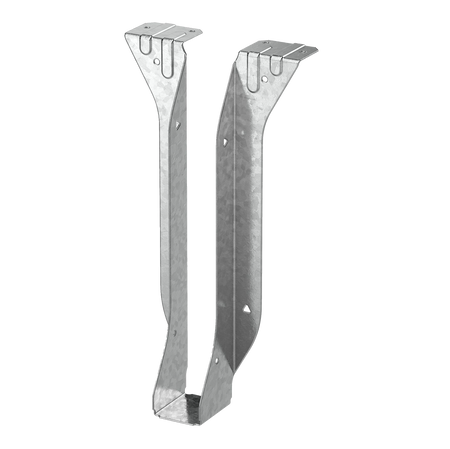

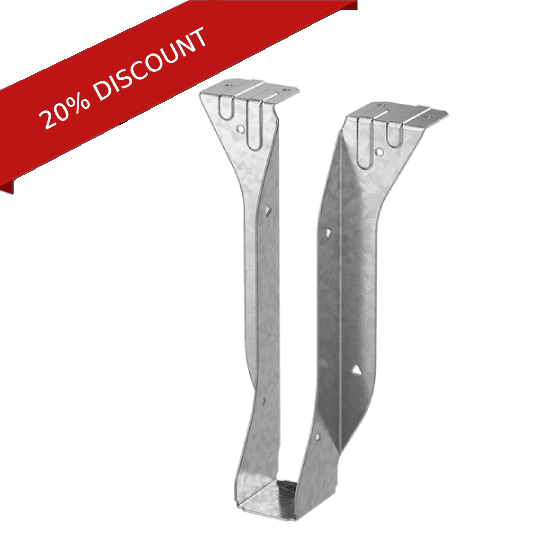

Simpson Strong-Tie JBA Junior Bent Hanger

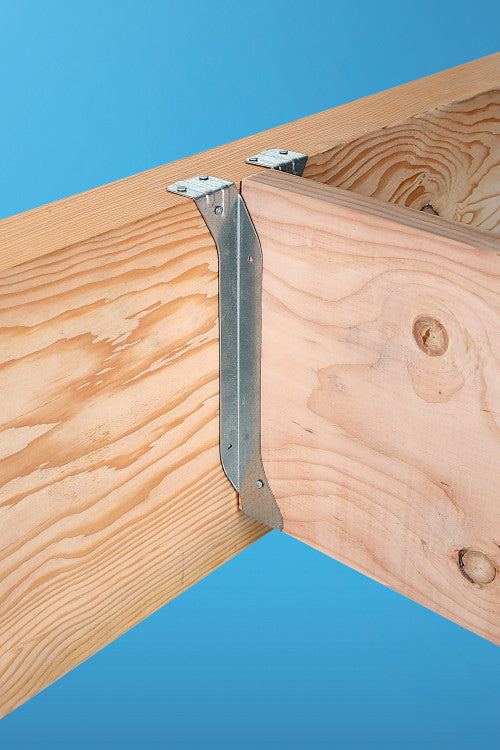

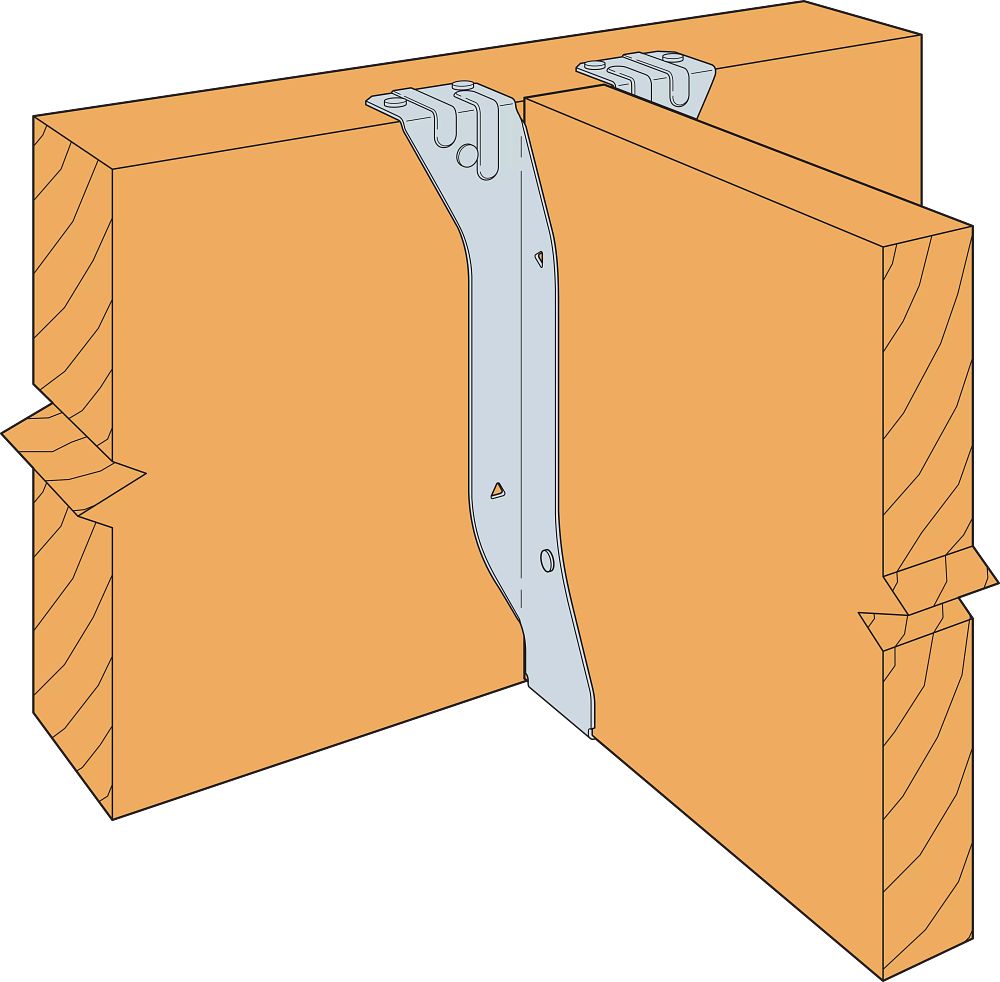

The JBA is a top-flange hanger for solid sawn lumber applications. This cost-effective hanger is designed to support light-to-medium loads while providing uplift. The JBA also features optional triangular nail holes for maximum nailing, which increases the allowable loads.

Key Features

• Unique two-level embossment provides added stiffness to the top flange

• Nail locations that enable effective use with nailers

• Additional load rating for a 2x or 3x nailer

• Engineered with increased uplift loads for earthquake or high-wind loading


Material

18 gauge

Finish

Galvanized

Installation

• Use specified fasteners; see General Notes and nailer table notes.

• Ledgers must be evaluated separately for each application. Check top-flange dimension, nail length and nail location on ledger.
